Features:

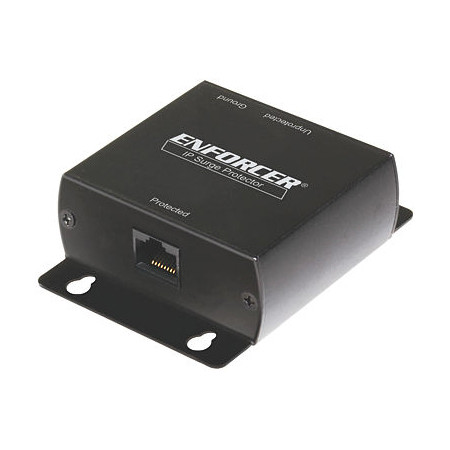

- Helps prevent damage to sensitive computer or CCTV equipment such as cameras, monitors, digital video recorders, video splitters, PCs, servers or networking hubs.
- Intercepts repeated surges and spikes that could damage network equipment.
- Installs on Cat5e/6 4-pair UTP cable with RJ45 jacks.
- Passive operation no external power required.
- Includes a grounding post.
Features
- Helps prevent damage to sensitive computer or CCTV equipment such as cameras, monitors, digital video recorders, video splitters, PCs, servers or networking hubs.
- Intercepts repeated surges and spikes that could damage network equipment.
- Installs on Cat5e/6 4-pair UTP cable with RJ45 jacks.
- Passive operation no external power required.
- Includes a grounding post.
Specifications
- Type - IP Surge Protector
- Bandwidth - Up to 1GHz
- Maximum input - 7.6Vp-p
- Insertion loss - <0.2dB
- Return loss - 16dB @ 75Ω
- Frequency response - Up to 3dB@113MHz
- Insulation resistance - 10,000 MΩ
- Maximum surge voltage - 4KV
- Discharging current - 100A
- Surge life - 300 surges @ 100A
- Surge protection time - 1ns
- Surge resistance - 0Ω
- Signal passing capability
- Breakdown voltage - 7.6V
- Clamping voltage - 10.0V
- Connector
- In - RJ45
- Out - RJ45
- Impedance - 42 Ω
- Dimensions - 3-7/16" x 2-5/8" x 1-1/16" (87x67x27 mm)
- Weight - 4.4-oz (126g)
- Material - Aluminum
- Operating temperature - -40º~194º F (-40º~90º C)
