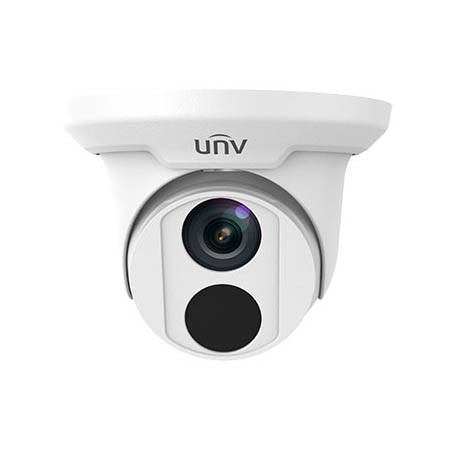

IPC3618SR3-DPF28LM-F Uniview 2.8mm 20FPS @ 8MP Indoor/Outdoor IR Day/Night WDR Eyeball IP Security Camera 12VDC/PoE

Features:

• Day/night functionality
• Smart IR, up to (30 m) 98 ft IR distance
• 2D/3D DNR (Digital Noise Reduction)
• Ultra 265,H.265,H.264,MJPEG
• Triple streams
• ROI (Region of Interest)
• ONVIF Conformance
• Complies with Section 889 of the NDAA

Specifications

• Model - IPC3618SR3-DPF28LM-F

Camera

• Sensor - 1/3", 8.0 megapixel, progressive scan,CMOS
• Lens - 2.8mm@F2.0
• DORI Distance - Lens : 2.8mm, Detect(m) : 84, Observe(m) : 33.6, Recognize(m) : 16.8, Identify(m) : 8.4
• Angle of view(H) - 112.7°
• Angle of View (V) - 60.1°
• Angle of View (O)- 146.5°
• Shutter - Auto/Manual, 1~1/100000 s
• Adjustment angle - Pan: 0°~360°, Tilt: 0°~80°, Rotate:0°~360°
• Min.Illumination - Colour: 0.05Lux (2.0,AGC ON), 0 Lux with IR
• Day/Night - IR-cut filter with auto switch (ICR)
• Digital noise reduction - 2D/3D DNR
• S/N - >56dB
• IR Range - Up to (30 m) 98 ft IR range
• Wavelength - 850nm
• IR On/Off Control - Auto/Manual
• Defog - Digital Defog
• WDR - 120dB

Video

• Video Compression - Ultra 265,H.265, H.264, MJPEG
• H.264 code profile - Baseline Profile, Main Profile
• Frame Rate
  • Main Stream - 20fps @ 8MP (3840 x 2160), 30fps @ 5MP (2944 x 1656), 30fps @ 4MP (2560 x 1440), 30fps @ 2MP (1920 x 1080)
  • Sub Stream - 20 fps @ 720P (1280 x 720)
  • Third Stream - 20 fps @ 4CIF (704 x 576)
• Video Bit Rate - 128 Kbps~16 Mbps
• OSD - Up to 4OSDs
• Privacy Mask - Up to 4areas
• ROI - Up to 2areas
• Motion Detection - Up to 4areas


• White Balance - Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction - 2D/3D DNR
• Smart IR - Support
• Flip - Normal/Vertical/Horizontal/180°
• Dewarping - NA
• HLC - Supported
• BLC - Supported

Network

• Protocols - IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL,QoS
• Compatible Integration - ONVIF(Profile S+Profile T), API
• Client - EZStation, EZView, EZLive
• Web Browser - Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view:Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Network - 10/100M Base-TX Ethernet

Certifications

• Certifications - CE: EN 60950-1, UL: UL60950-1, FCC: FCC Part 15

General

• Power - 12 V DC±25%,PoE (IEEE802.3 af), Power consumption: Max 5W
• Dimensions (Φ x H) - Φ5.0" x 3.7" (Φ126 x 94mm)
• Net Weight - 0.99lb (0.45kg)
• Material - Metal+ Plastic
• Working Environment - -22°F ~ 140°F (-30°C ~ +60°C) Humidity: ≤95% RH (non-condensing)
• Strorage Environment - -22°F ~ 140°F (-30°C ~ +60°C) Humidity: ≤95% RH (non-condensing)
• Surge Protection - 2KV
• Ingress Protection - IP67

IPC3618SR3-DPF28LM-F Datasheet
