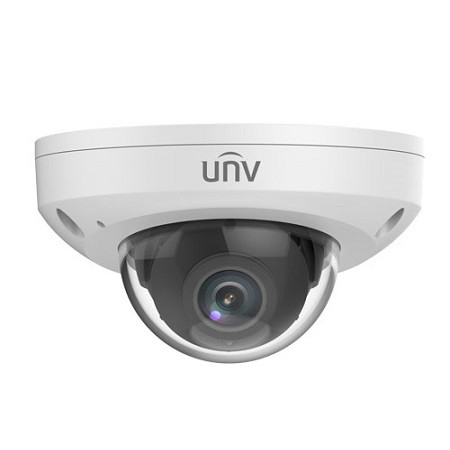

IPC314SB-ADF28K-I0 Uniview 2.8mm 30FPS @ 4MP LightHunter Indoor/Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Features:

• 1/3" CMOS sensor
• 30fps @ 4MP
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR
• Built-in Mic
• Smart IR, up to 98 ft IR distance
• 3-Axis
• IK10 vandal resistant, IP67 protection
• Supports 256G Micro SD card
• 12VDC/PoE
• Complies with Section 889 of the NDAA

Specifications

Camera

• Sensor - 1/3", 4.0 megapixel, progressive scan, CMOS
• Lens - 2.8mm@F1.6
• DORI Distance - Lens (mm) - 2.8, Detect (m) - 63, Observe (m) - 25.2, Recognize (m) - 12.6, Identify (m) - 6.3
• Angle of View (H) - 101.1º
• Angle of View (V) - 55.3°
• Angle of View (O) - 111.1°
• Adjustment angle - Pan: 0°~ 90°, Tilt: 0°~ 68°, Rotate: 0°~ 360°
• Shutter - Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination - Colour: 0.003Lux (F1.6, AGC ON), 0Lux with IR
• Day/Night - IR-cut filter with auto switch (ICR)
• S/N - ≥52dB
• IR Range - Up to 98 ft (30m) IR range
• Wavelength - 850nm
• IR On/Off Control - Auto/Manual
• Defog - Digital Defog
• WDR - DWDR

Video

• Video Compression - Ultra 265, H.265, H.264, MJPEG
• H.264 code profile - Baseline profile, Main Profile, High Profile
• Main Stream - Main Stream: 30fps @ 4MP (2688x1520), 30fps @ 4MP (2560x1440), 30fps @ 3MP (2304x1296), 30fps @ 2MP (1920x1080)
• Sub Stream - 30fps @ 720p (1280x720), 30fps @ D1 (720x576), 30fps @ 640x360, 30fps @ 2CIF(704x288), 30fps @ CIF(352x288)
• Third Stream - 30fps @ D1 (720x576), 30fps @ 640x360, 30fps @ 2CIF(704x288), 30fps @ CIF(352x288)
• Video Bit Rate - 128 Kbps~16 Mbps
• 9:16 Corridor Mode - Supported
• OSD - Up to 8 OSDs
• Privacy Mask - Up to 4 areas
• ROI - Up to 8 areas
• Motion Detection - Up to 4 areas


• White Balance - Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction - 2D/3D DNR
• Smart IR - Support
• Flip - Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• HLC - Supported
• BLC - Supported

Audio

• Audio Compression - G.711
• Two-way audio - Supported
• Suppression - Supported
• Sampling Rate - 8KHZ

Storage

• Edge Storage - Micro SD, Up to 256GB
• Network Storage - ANR, NAS(NFS)

Network

• Protocols - IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatibility Integration - ONVIF (Profile S, Profile G, Profile T), API
• Client - EZStation, EZView, EZLive
• Web Browser - Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Audio I/O - Audio cable, Input: impedance 35kΩ; amplitude 2V [p-p], Output: impedance 600Ω; amplitude 2V [p-p]
• Built-in Mic - Supported
• Network - 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• Certifications - CE: EN 60950-1, UL: UL60950-1, FCC: FCC Part 15

General

• Power - DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 6W
• Dimensions (Ø x H) - Ø4.3" x 2.4" (Φ110 x 61mm)
• Net Weight - 0.82lb (0.37kg)
• Material - Metal + Plastic
• Working Environment - -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
• Strorage Environment - -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
• Surge Protection - 2KV
• Ingress Protection - IP67
• Vandal Resistant - IK10
