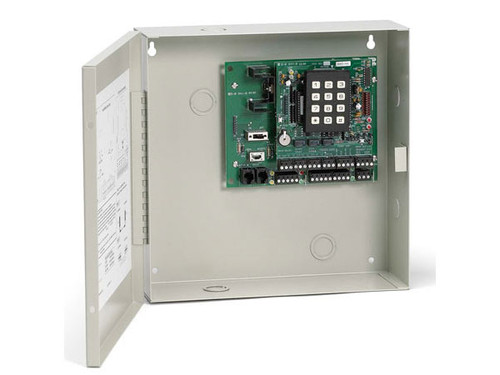

HubMiniMax-II IEI Secured Series MiniMax II Single Door Control Standard Version

Features:

• 2000 Users
• Network up to 64 doors
• 1500 Transaction storage per door
• First-In Auto Unlock
• Eight Timezones per door
• 16 Holidays per door
• Programmable with Hub Manager Professional Software
• LAN/WAN Connectivity (requires IEI SEG-1)
• Modem compatible (requires IEI SS-Modem)

The Hub MiniMax II features the IEI Door Control Module (DCM) for single door control that can be networked with other MiniMax controllers or Hub Max controllers to expand your system up to a total of 64 doors. The backplane not only has the DCM pre-installed, it also contains a power supply for readers as well as for a door strike or magnetic lock (AC or DC). The Hub MiniMax II enclosure dimensions are ideal for applications where the control is installed at the door (e.g. above the ceiling over the door). The Hub MiniMax II is designed for simplicity and to provide a clean and easy installation. Hub MiniMax II includes Hub Manager Professional software that can communicate to the MiniMax either through RS232, *LAN/WAN, or via modem.
