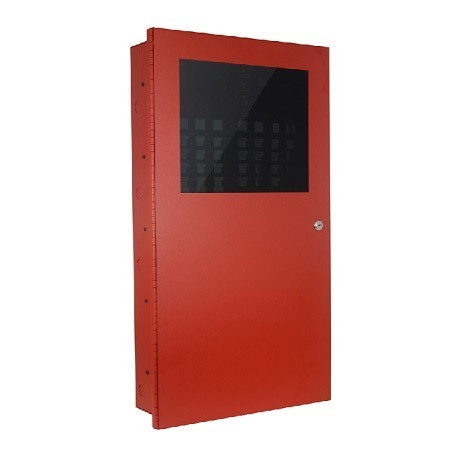

HMX-DPS25R Potter High-Rise Voice Evacuation Distributed Panel - 25W Single Channel - Red

Features:

• Model Number : HMX-DPS25R
• Master Mic Control
• 16 Switch Control Points
• Dual Channel DMR and Audio Interface
• High Speed Communication Loop
• 25/50/100 Dual or Single Watt Amplifier (200W Single Channel optional), Dual/Single Amplification
• Configuration for 4 or 8 Output Zones
• 120 VAC Power Supply and Battery Charger

The HMX MP and DP panels operate with any Fire Alarm Control Panel (FACP) and provide 25, 50 or 100 Watts of speaker power. The EVAX panel has its own power supply and battery charger. The Panel must be wired with 120 or 240 VAC and standby batteries connected. The HMX panel is housed in a surface or semi-flush mounted backbox with a hinged and key locked door.

Specifications

• Dimensions - 14.5" x 27" x 4" (W x H x D)
• Primary Power - 120 VAC
• Battery Power - 24 VDC
• Electrical Ratings - All circuits @ 24VDC
• Voltage - 5V peak to peak max
• Frequency - 1.024MHz
• Current - 50mA max
• Impedance - 120 Ohms (max between panels)
• Battery Charging - EVX-25/50: 800mA, maximum battery size 17Ah, EVX-100: 1A, maximum battery size 24Ah
• Communications Bus - RS-485 standard, 1M Baud data rate, low capacitance cable
• Color - Charcoal Grey, Red (Optional)

HMX-DPS25R Datasheet
