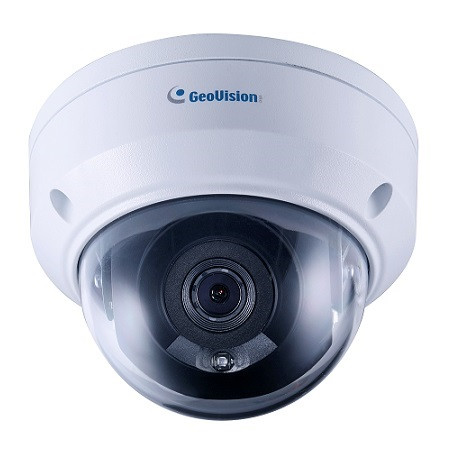

GV-TDR2704-2F Geovision 2.8mm 30FPS @ 2MP Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Features:

• Model Number: GV-TDR2704-2F
• Manufacturer SKU Number: 84-TDR274W-2F10
• Sales Part Number: 125-TDR2704-002
• 1/2.7" progressive scan low lux CMOS sensor
• Min. illumination at 0.01 lux
• Dual streams from H.265, H.264 or MJPEG
• Up to 30 fps at 1920 x 1080
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Built‐in micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10) for local storage

Specifications

Camera

• Image Sensor - 1/2.7" progressive scan low lux CMOS
• Picture Elements - 1920 (H) x 1080 (V)
• Minimum Illumination
  • Color - 0.01 Lux (F2.0, AGC ON)
  • IR ON - 0 Lux
• Shutter Speed - Auto / Manual (1 ~ 1/100,000 sec)
• White Balance - Auto / Manual
• Gain Control - Auto / Manual
• S/N Ratio - 52 dB
• WDR Pro - Yes
• Dynamic Range - Up to 120 dB

Lens

• Megapixel - Yes
• Day / Night - Yes (with removable IR‐cut filter)
• Lens Type - Fixed
• Focal Length - 2.8 mm
• Maximum Aperture - F/2.0
• Mount - M12
• Horizontal FOV - 113°
• Operation
  • Focus - Fixed
  • Zoom - Fixed
  • Iris - Fixed
• IR LED Quantity - 1 IR LED
• Max. IR Distance - 30 m (100 ft)

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Dual streams from H.265, H.264 or MJPEG
• Video Resolution
  • Main Stream - 1920 x 1080 (Default), 1280 x720
  • Sub Stream - 1280 x 720, 720 x 576, 704 x 288, 640 x 480, 640 x 360 (Default), 352 x 288
• Frame Rate - 30 fps at 1920 x 1080 (60 / 50 Hz). * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
• Video Analytics - Motion Detection, Tampering Alarm, Crossing line, Intrusion. *Tampering alarm, Cross Line, and Intrusion are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°-including Corridor format)

Network

• Interface - 10/100 Ethernet
• Protocol - 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

• Temperature Detector - No
• Camera Angle Adjustment
  • Pan - 3° ~ 360°
  • Tilt - 0° ~ 68°
  • Rotate - 0° ~ 360°
• Connectors
  • Power - DC Jack (DC 12 V, 1.25 A), PoE
  • Ethernet - RJ‐45 connector
  • Local Storage - Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10). *UHS‐II card type is not supported

General

• Operating Temperature - ‐30 °C ~ 60 °C (‐22 °F ~ 140 °F)
• Humidity - 10% ~ 90% (no condensation)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 5.0 W
• Dimensions - Ø 108.7 x 81.1 mm (Ø 4.3” x 3.2”)
• Weight - 0.36 kg (0.79 lb)
• Ingress Protection - IP67
• Vandal Resistance - IK10
• Regulatory - FCC, CE, RoHS compliant

Web Interface

• Installation Management - Web-based configuration
• Maintenance - Firmware upgrade through Web Browser or GV‐IP Device Utility
• Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Applications

• Software Supported - GV‐VMS (V17.4.1 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V1.4.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.1.0.0), GV‐Mobile Server (V1.5.1)
• Live Viewing - Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App
