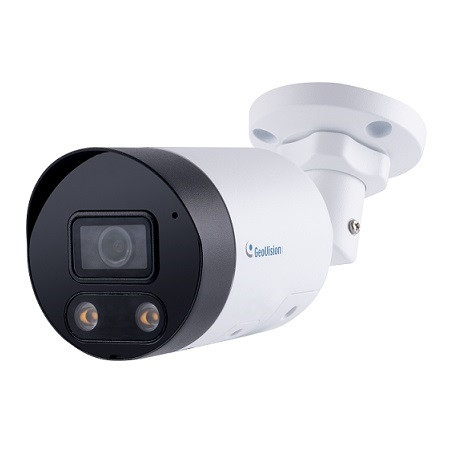

GV-TBL8804 Geovision 4mm 20FPS @ 8MP Full Color Outdoor White Light Day/Night WDR Bullet IP Security Camera 12VDC/PoE

Features:

• Model Number: GV-TBL8804
• Manufacturer SKU Number: 84-TBL8804-0010
• Sales Part Number: 125-TBL8804-0000
• AI Deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.7" progressive scan super low lux CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Wide Dynamic Range Pro (WDR Pro)
• Min. illumination at 0.01 lux
• Up to 20 fps at 3840 x 2160

The Bullet IP Camera is an outdoor, network camera equipped with an automatic IR‐cut filter, IR LED, and two white LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV‐TBL8804 adheres to IP67 standards, and can be powered through PoE.

Specifications

• Image Sensor - 1/2.7" progressive scan super low lux CMOS
• Picture Elements - 3840 (H) x 2160 (V)
• Minimum - Color: 0.01 Lux (F2.0, AGC ON)
• Illumination - IR ON: 0 Lux
• Shutter Speed - Auto / Manual (1 ~ 1/100000 sec)
• White Balance - Auto / Manual
• Gain Control - Auto / Manual
• S/N Ratio - 56 dB
• WDR Pro - Yes
• Dynamic Range - Up to 120 dB

Lens

• Megapixel - 8 MP
• Day / Night - Yes (with removable IR‐cut filter)
• Lens Type - Fixed
• Focal Length - 4 mm
• Maximum Aperture - F/2.0
• Mount - M12
• Horizontal FOV - 86°
• Operation
  • Focus - Fixed
  • Zoom - Fixed
  • Iris - Fixed
• IR LED Quantity - 1 IR LED
• Max. IR Distance - 30 m (100 ft)
• White LED Quantity - 2 White LEDs
• Max. White Light Distance - 20 m (65 ft)

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Triple streams from H.265, H.264 or MJPEG
• Video Resolution
  • Main Stream - 3840 x 2160 (Default), 2944 x 1656, 2560 x 1440, 1920 x 1080
  • Sub Stream - 1280 x 720, 704 x 576, 704 x 288, 640 x 360 (Default), 352 x 288
  • Third Stream (Closed by Default) - 704 x 576, 704 x 288, 640 x 360, 352 x 288
• Frame Rate - 20 fps @ (3840 x2160), 25 fps @ (2944 x 1656) / (2560 x 1440), 30 fps @ (1920 x 1080) (60 / 50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes)
• Video Analytics - Motion Detection, Tampering Alarm, Audio Detection, *Tampering alarm and audio detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Flicker‐less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format)
• Audio Compression - G.711
• Audio Support - Two‐way Audio (built‐in microphone and speaker)

Deep Learning Function

• AI Perimeter Protection - Intrusion, Crossing Line, Entering Area, Leaving Area (Human & Vehicle classification)

Network

• Interface - 10/100 Ethernet
• Protocol - ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

• Temperature Detector - No
• Camera Angle Adjustment
  • Pan - 0° ~ 360°
  • Tilt - 0° ~ 90°
  • Rotate - 0° ~ 360°
• Connectors
  • Power - DC Jack (DC 12V, 1.25A), PoE
  • Ethernet - RJ‐45 Connector
  • Audio - Two‐way (built‐in microphone and speaker)
  • Local Storage - Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) *UHS‐II card types are not supported

General

• Operation Temperature - ‐30°C ~ 60°C (‐22°F ~ 140°F)
• Humidity - 0% ~ 95% (no condensation)
• Power Source - 12V DC / PoE (IEEE802.3af)
• Max. Power Consumption - 10.5W
• Dimensions - 187 × 71 × 71 mm (7.4” × 2.8” × 2.8”)
• Weight - 0.41 kg (0.99 lb)
• Ingress Protection - IP67
• Regulatory - CE, FCC, RoHS compliant

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or GV‐IP Device Utility
• Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Digital Zoom, Text Overlay, Image Masking
• Language - Czech, English, French, German, Italian, Russian, Traditional Chinese

Web Interface

• Software Supported - GV‐VMS (V17.4.1 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0)
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Browser (IE, Edge, Chrome), Mobile App
