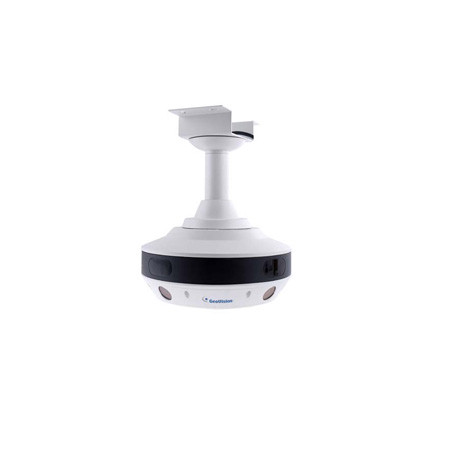

GV-SV48000 Geovision 4 X 3.93mm 15FPS @ 4000 x 3000 Outdoor IR Day/Night WDR Panoramic IP Security Camera 24VDC/24VAC/POE

Features:

• Model Number: GV-SV48000
• Manufacturer SKU Number: 84-SV48000-001U
• Sales Part Number: 120-SV4800-000
• 4 x 1/1.7" progressive scan CMOS
• Dual streams from H.264 or MJPEG
• Up to 15 fps at 4000 x 3000
• Two?way audio
• Four sensor inputs and one alarm output

GV-SV48000 features four 12MP CMOS image sensors to deliver a video resolution of 4000 x 3000 at up to 15fps. The camera offers wide panoramic views at four different angles utilizing surveillance images from the four 3.93 mm lenses to monitor open areas. Its night vision is further enhanced with its high power LEDs with up to 50 m (164.04 ft) effective IR distance. GV-SV48000 adheres to IP67 and IK10 standards. Captured surveillance images from all angles can be stored in either H.264 or MJPEG format on SD cards.

Specifications

Camera

• Image Sensor - 4 x 1/1.7" progressive scan CMOS
• Picture Elements - 4 x 4000 (H) x 3000 (V)
• Minimum illumination- Color - 0.1 Lux, B/W - 0.05 Lux, IR On - 0 Lux
• Shutter Speed - Automatic, Manual (1/30 ~ 1/16000 sec)
• White Balance - Automatic, Manual (2800 ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 54 dB
• WDR - Yes
• Dynamic Range - Up to 72 dB

Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR-Cut Filter)
• Lens Type - Fixed
• Focal Length - 3.93 mm
• Maximum Aperature - F/2.3
• Mount - M12, Pitch 0.5 mm
• Horizontal FOV - 112°
• Image Format - 1/1.7"
• Operation - Focus - Fixed, Zoom - N/A, Iris - Fixed
• IR LED Quantity - 12 IR LEDs
• Max. IR Distance - 50 m (164.04 ft)

Operation

• Video Compression - H.264, MJPEG
• Video Streaming - Dual streams from H.264 or MJPEG
• Frame Rate - 15 fps at 4000 x 3000 (60/50 Hz)
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Low Lux Enhancement, Denoise, Metering
• Audio Compression - G.711, AAC (optional)
• Audio Support - Two-Way Audio
Sensor Output - 1 Digital Output (4A 30V DC/250V AC)

Video Resolution

• Main Stream - 4:3 - 4000 x 3000 (Default)
• Sub Stream - 4:3 - 1024 x 768 (Default), 640 x 480, 320 x 240

Network

• Interface - 10/100/1000 Ethernet
• Protocol - DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA

Mechanical

• Temperature Detector - Yes
• Connectors
  • Power - DC Jack, PoE ++
  • Ethernet - RJ-45
  • Audio - 1 In (RCA female for microphone), 1 Out (RCA female for speaker)
  • Digital I/O - I/O wires
  • Local Storage - Micro SD card slot x 4 (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported.

General

• Operating Temperature
  • Start-up - -40°C (-40°F)
  • Operation - -40°C ~ 50°C (-40°F ~ 122°F)
• Humidity - 10% to 90% (no condensation)
• Heater - Heater On: 0°C (32°F); Off: 5°C (41°F)
• Fan-on - 50°C (122°F)
• Power Source - 24V DC, 3.75A / 24V AC, 3A / High PoE (PoE++, 72 W)
• Max. Power Consumption - 72 W
• Dimensions - Ø 325.60 mm x 152.60 mm (12.82" x 6.01")
• Weight - 3700 g / 8.16 lb
• Ingress Protection - IP67
• Vandal Resistance - IK10 for metal casing
• Regulatory - CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

• PoE Standard - PoE++ (72 W) / PD
• PoE Power Supply Type - End-span
• PoE Power Output - Per Port 56V DC, 1286mA. Max. 72 watts

Web Interface

• Installation Management - Web-based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Network Storage - GV-VMS, GV-Backup Center, GV-Recording Server
• Smart Device Access - GV-Eye for iOS and Android
• Live Viewing - Browser (IE, Chrome, Firefox, Safari), Mobile App
• CMS Server support - GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
