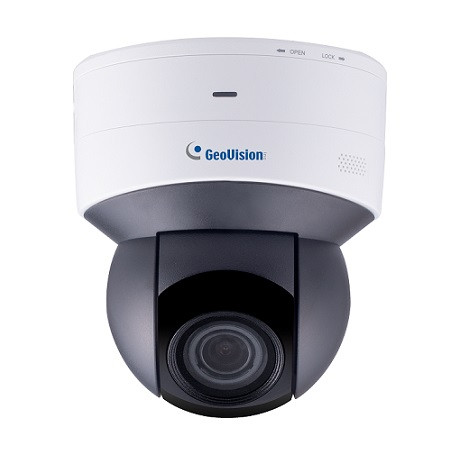

GV-PTZ5810-IR Geovision 2.7~13.5mm Motorized 5x Optical Zoom 30FPS @ 5MP Outdoor IR Day/Night WDR PTZ IP Security Camera 12VDC/PoE

Features:

• Model Number: GV-PTZ5810-IR
• Manufacturer SKU Number: 84-PTZ580W-IR00
• Sales Part Number: 125-PTZ580W-IR00
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.7" progressive scan CMOS sensor
• Min. illumination at 0.003 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2880 x 1620
• Motorized varifocal lens for remote focus / zoom adjustments
• 5x optical zoom
• Intelligent IR

GV-PTZ5810-IR is an indoor network PTZ camera that offers 5x optical zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 2880 x 1620 at 30 fps. In low-light environments, night vision is enhanced with its LEDs, which allow up to 30 m (100 ft) effective IR distance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built-in WDR Pro.

Specifications

Camera

• Image Sensor - 1/2.7" progressive scan CMOS
• Optical Zoom - 5x
• Minimum Illumination - Color: 0.003 Lux (F1.2, AGC ON), IR ON: 0 Lux
• Electronic Shutter - Auto / Manual (1 ~ 1/100000 sec)
• White Balance - Automatic, Manual
• Iris control - Fixed
• AGC control - Auto / Manual
• S/N Ratio - 56 dB
• WDR - WDR Pro
• Dynamic Range - Up to 120 dB

Optical Lens

• Megapixel - 5 MP
• Day/Night - Yes (with removable IR‐cut filter)
• Lens Type - Motorized varifocal lens
• Focal Length - 2.7 ~ 13.5 mm
• Maximum Aperature - F/1.2
• Horizontal FOV - 30.6° ~ 106.9°

Operation

• Focus - Auto / Manual
• Zoom - 5x
• Iris - Fixed
• IR LED Quantity - 2 IR LEDs
• Max. IR Distance - 30 m (100 ft)

Video

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Triple streams from H.265, H.264 or MJPEG
• Video Resolution
  • Main Stream - 2880 x 1620 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 720 x 576, 640 x 360
  • Sub Stream - 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default)
  • Third Stream (Closed by Default) - 720 x 576, 704 x 288, 640 x 360, 352 x 288
• Frame Rate - 30 fps at 2880 x 1620, 30 fps at 2560 x 1440, 30 fps at 2304 x 1296,30 fps at 1920 x 1080 (60 / 50 Hz). * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
• Video Analytics - Motion Detection, Tampering Alarm, Audio Detection. *Tampering alarm and audio detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e-mail and FTP
• Image Setting - Brightness, Saturation, Contrast, Sharpness, Image Orientation (Flip, Mirror, 0°, 180°)

Audio

• Audio Compression - G.711
• Audio Support - Two‐way Audio

Deep Learning Function

• AI Analytics - Cross Line, Intrusion, Auto Tracking, Enter Area, Leave Area, Face Detection, People Flow Counting, Crowd Density Monitoring

Network

• Interface - 10/100 Ethernet
• Protocol - 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

• Connectors
  • Power - DC 12V, PoE+ (IEEE 802.3at)
  • Ethernet - 10/100 Base‐TX, RJ‐45 connector
  • Audio - Two‐way Audio (Built-in microphone and speaker)
  • Local Storage - Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10). *UHS‐II card types are not supported
  • Digital I/O - I/O wires
  • RS‐485 - RS‐485 wires

Operation

• Pan Travel - 350°
• Tilt Travel - 0° ~ 90°
• Manual Speed - Pan: 0.1° ~ 60°/s, Tilt: 0.1° ~ 50°/s
• Preset Speed - Pan: 60°/s, Tilt: 50°/s
• Presets - Max. Number: 255, Max. Number: 16
• Patrol - Max. Actions Allowed: 32
• OSD - 8
• Privacy Mask - 24
• Proportional Pan & Tilt - Manual (Pan and tilt speed proportional to zoom ratio)
• Automatic Function - Preset, Patrol
• Mechanical Flip - Yes
• Digital Slow Shutter - On / Off
• Motion Detection - On / Off
• Wide Dynamic Range - On / Off
• Day/Night: Mechanical IR Cut Filter - On / Off
• Image Rotation - Normal, Flip Vertical, Flip Horizontal, 180°
• 3D Noise Reduction - 0 ~ 255
• Alarm
  • Digital I/O - 1 Input, dry contact, NO / NC, 1 Relay Output (AC 125V 0.5A / DC 30V 1A)
  • Reaction - Alarm Output, PTZ to Preset, Trigger Storage

General

• Operating Temperature - -10⁰C ~ 50⁰C (14°F ~ 122°F)
• Humidity - 95% (non-condensing)
• Dimensions - Ø129 x 143.6 mm (Ø5.1” x 5.7”)
• Weight - 0.75 kg (1.65 lb)
• Power Source - DC 12V, PoE+ (IEEE 802.3at)
• Power Consumption - 15 W
• Regulatory - CE, FCC, RoHS compliant

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Software Application

• Software Supported - GV-DVR / NVR (V8.9.1), GV-VMS (V17.4.3 / V18.2.1), GV-Control Center (V3.8.0 / V4.0.1), GV-Edge Recording Manager Windows Version (V2.0.0), GV-Recording Server / Video Gateway (V2.0.1), GV-Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1), GV-AI Guard (V1.0.0)
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Bowser (IE, Edge, Chrome, Firefox, Safari), Mobile App
