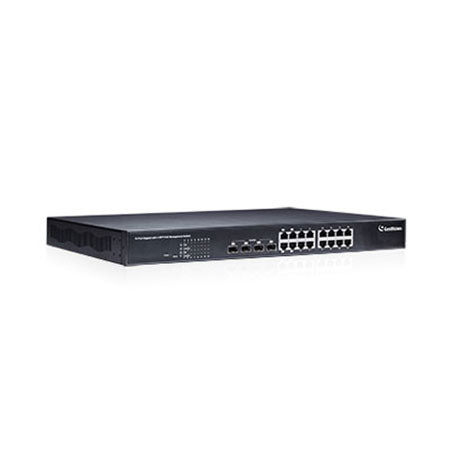

GV-POE1611-V2 Geovision 16-Port Gigabit 250W Total 802.3at Web Management PoE Switch

Features:

Features:

• Model Number: GV-POE1611-V2
• Manufacturer SKU Number: 84-POE1611-201U
• Sales Part Number: 140-POE1611-G00
• 16-Port 10/100/1000BaseT(X), PoE+ with 4 SFP Combo Uplink Ports
• IEEE 802.3at Compliant (16 Ports at Full 15.4 W)
• Up to 9.6 KB Jumbo Frame
• Web-based Configuration and Management
• VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link Aggregation, LACP, Port Security, Bandwidth Control, Storm Control
• Max. 250 W power consumption
• 19" Rack-mount
• Up to 15 GV-IP Cameras support

The GV-POE1611-V2 is a 16-port 10/100/1000BaseT(X) PoE+ with 4 combo SFP Rack-mount Web Smart PoE Switch. The switch supports IEEE 802.3at Power over Ethernet standard and maximum 250 W power consumption, and no special network cable is required for connecting your powered devices (PD), such as IP cameras. The switch also provides exceptionally smart Web management features, such as VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, etc. The switch is designed for medium or large network environment to strengthen its network connection and efficiency. It also gives you the option of installing it in a 19” cabinet with a rack-mount kit or underneath a desk.

Specifications

Ethernet

• Layer Supported - L2

Ports

• Number of Ports
  • 16 ports
  • 16-port 10/100/1000BaseT(X) with RJ-45 Connectors, PoE+
  • 4-port SFP Combo Uplink Port

Performance

• MAC Address - 8 K
• Buffer Memory - 4 M bits
• Jumbo Frames - 9.6 KB
• Transmission Method - Store and Forward
• Transmission Media - 10/100BaseT(X) Cat. 5 UTP/STP.1000BaseT Cat. 5e, 6 UTP/STP
• Filtering/Forwarding
  • 10 Mbps port - 14,880 pps
  • 100 Mbps port - 148,800 pps
  • 1000 Mbps port - 1,488,000 pps
• Backplane Capacity - 32 Gbps

Smart Features

• Port Based VLAN - 16
• Tag Based VLAN - 16, VID 1~4094
• IGMP Snooping - V1 and V2
• Link Aggregation - up to 8 groups
• Quality of Service (QoS) - up to 4 queues, 802.1p, DSCP
• Security - IEEE 802.1X, Source IP Filter
• Port Management - Port State, Speed/Duplex, Flow Control Configuration, Port Mirroring , Bandwidth Control, Broadcast Storm Control, PoE
• Administrator Management - Web Management, Password Protection, Configuration, Backup / Restore, Firmware Upgrade

Mechanical Characteristics

• LED Indicators - Per Port: Link/Act PoE Act/Status Power

Electrical Characteristics

• PoE Power
  • Input - 100 ~ 240 V/AC, 50 ~ 60 Hz
  • Output - IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts(16 Ports at Full 15.4 W / 8 Ports at Full 30 W)
• PoE Power Supply Type - End-Span
• Max. Power Consumption - 250 W

General

• Dimensions (H x W x D) - 44 x 440 x 331 mm (1.73” x 17.3” x 13.03”)
• Weight - 4.6 kg (10.14 lb)
• Operating Temperature - 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature - -20°C ~ 90°C (-4°F ~ 194°F)
• Humidity - 10 to 90% RH (non-condensing)

Standards and Regulatory

• Standards
  • IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX
  • IEEE 802.3x Full-duplex and Flow Control
  • IEEE 802.3ad Link Aggregation Control Protocol
  • IEEE 802.1Q VLAN
  • IEEE 802.1p Class of Service
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid Spanning Tree Protocol
  • IEEE 802.1X Port-based Network Access Control
  • IEEE 802.3at Power Over Ethernet (PoE+)
• Regulatory - CE, FCC Class A
