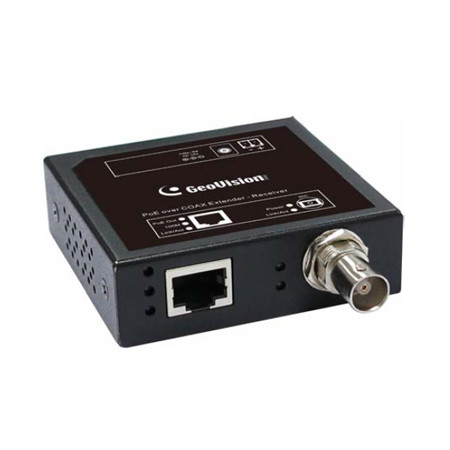

GV-POC0100 Geovision 1-Port BNC PoE Over Coaxial Extender Up to 590 Feet Over RG6

Features:

• Model Number: GV-POC0100
• Manufacturer SKU Number: 84-POC0100-001U
• Sales Part Number: 140-POC-0100
• 1-Port 10/100BaseT(X), PoE over Coaxial Extender
• IEEE 802.3at compliant
• Extension up to 230 m (754.6 ft) via RG11 (7C) and up to 180 m (590.5 ft) via RG6 (5C2V)
• Pocket size with rigid metal case
• Smart Plug and Play
• Adapt to buildings with existing Coaxial Cables and power source
• Power source free at remote site

Specifications

Ports

• Number of Ports - 1-Port, 10/100BaseTX, PoE over Coaxial Extender
• Network Standard - IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3af/at
• Connectors - Ethernet: 10/100Base-TX, RJ45 Connector, Auto-MDI/MDI-X BNC Connector
• Cables - PoE: Cat.5e above PoC: RG6 (75Ω), RG11 (75Ω)

Mechanical

• LED Indicator - Transmitter5 LEDs: PoE Out, 100 m (328 ft), Ethernet Link/Act, Coaxial Power, BNC Link/Act, 5 LEDs: PoE In, 100 m (328 ft), Ethernet Link/Act, Coaxial Power, BNC Link/Act

Electrical Characteristics

• Power Input - Power Adapter: 100 ~240V AC to 54V DC / 0.92A 5.5/2.1 mm DC Jack and 2-pin Terminal Block
• PoE Power - IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts
• Power Output and Range - For typical copper-core video coax. A full-rate network connection can be established over RG6 (5C2V) and RG11 (7C), The PoE power availability (measured from PoC Receiver PoE Out port) depends on the length of coaxial cable and power source connected to the Transmitter: PoE+ switch: 10.45 watts max. (RG6) and 18.06 watts max (RG11), External 54V power supply: 14.05 watts max. (RG6) and 26.34 watts max. (RG11)

General

• Dimensions (H x W x D) - 0.87” x 2.8” x 2.6” - BNC Connector excluded
• Weight - 0.3 lb
• Operating Temperature - 32°F ~ 122°F
• Storage Temperature - -4°F ~ 185°F
• Humidity - 10 to 90% RH (non-condensing)

GV-POC0100 Spec Sheet
