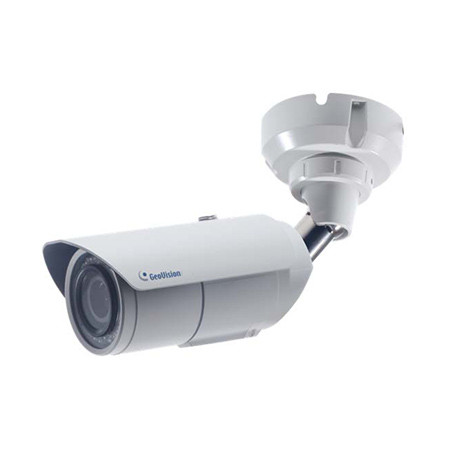

GV-LPC2211 Geovision 9~22mm Motorized 30FPS @ 1920 x 1080 Outdoor IR LPR IP Security Camera 12VDC/PoE

Features:

• Model Number: GV-LPC2211
• Manufacturer SKU Number: 84-LPC2211-0010
• Sales Part Number: 610-LPC2211-20M
• 1/2.8™ progressive scan super low lux CMOS
• Motorized varifocal lens for remote focus / zoom adjustment
• Dual streams from MJPEG or H.264
• Up to 30 fps at 1920 x 1080
• Maximum speed 120 km/h (75 mph)
• Recognition for reflective License Plate only
• Intelligent IR

Specifications

Camera

• Image Sensor - 1/2.8™ progressive scan super low lox CMOS
• Picture Elements - 1920 (H) x 1080 (V)
• Camera Type - Color, B/W
• Shutter Speed - Auto / Manual (1/120 ~ 1/2000 sec)
• White Balance - Auto / Manual (2800K ~ 8500K)
• S/N Ratio - 56 dB
• WDR - Yes
• Dynamic Range - Up to 72 dB
• Max. Speed - 120 km/h (75 mph)

Lens

• Megapixel - 2 MP
• Lens Type - Motorized varifocal lens
• Focal Length - 9 ~ 22 mm
• Maximum Aperture - F/2.0 ~ F/3.5
• Mount - ™ 14 mm
• Image Format - 1/2.7"
• Horizontal FOV - 39™ ~ 17™
• Operation - Focus: Remote Focus, Zoom: 2.5x optical zoom, Iris: P-Iris
• IR LED Quantity - 24 IR LEDs
• IR Distance - 32.8 ~ 65.6 ft

Operation

• Video Compression - H.264, MJPEG
• Video Stream - Dual streams from H.264 and MJPEG
• Frame Rate - 30 fps at 1920 x 1080 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, Auto Exposure, White Balance, Flicker less, Image Orientation, Shutter Speed, Maximum Video Gain, D/N Sensitivity, Denoise, Defog, Metering
• Audio Compression - G.711, AAC (Optional)
• Audio Support - Two-way audio

Video Resolution

• Main Stream - 16:9 1920 x 1080, 1280 x 720
• Sub Stream - 16:9 640 x 360
• TV-Out - N/A

Network

• Interface - 10/100 Base-T Ethernet, RJ-45 connector
• Protocol - HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)

Mechanical

• Temperature Detector - Yes
• Camera Adjustment - Pan 0™ ~ 360™, Tilt 90™ ~ 180™
• Power - 2-pin terminal block, PoE
• Ethernet - RJ-45
• Audio - N/A
• Digital I/O - N/A
• TV-Out - N/A
• LED Indicator - N/A

General

• Start-up Temperature - -4™F ~ 122™F
• Operating Temperature - -22™F ~ 122™F
• Humidity - 10% ~ 90% (non-condensing)
• Power Source - DC 12V, PoE (IEEE 802.3af)
• Max. Power Consumption - 12.3 W
• Dimensions Without support rack - 5.6" x 3.06" x 4.05"
• Weight - 1.8 lbs
• Ingress Protection - IP67
• Vandal Resistance - IK10 for metal casing
• Regulatory - CE, FCC, RCM, RoHS compliant

Power over Ethernet

• PoE standard - IEEE (802.3af Power over Ethernet / PD)
• PoE Power Supply Type - End-Span
• PoE Power Output - Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

• Installation and Management - Web-based configuration
• Firmware Upgrade - Remote upgrade through Web Browser GV-IP Device Utility included in the Software DVD
• Access from Web Browser - Camera Live View, Video Recording, Video Quality, Bandwidth Control, Image Snapshot, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay, Motion Detection, IP Address Filtering, Digital PTZ
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English /French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Network Storage - GV-System (GV-DVR/NVR), GV-VMS, GV-Recording Server
• Smart Device Access - GV-Eye for Android and iOS Embedded 3GPP/ISMA browser
• Live Viewing - IE, Chrome, Firefox, Edge, Safari
• CMS Server support - GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
• LPR Management - GV-ASManager

GV-LPC2211 Datasheet
