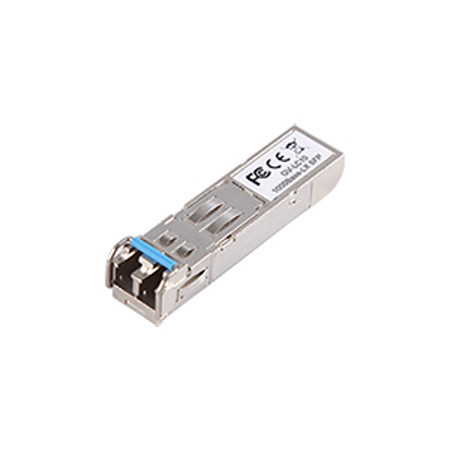

GV-LC10 Geovision SFP Transceiver 10km

Features:

• Model Number: GV-LC10
• Manufacturer SKU Number: 84-POELC10-0010
• Sales Part Number: 140-POELC10-000

The SFP Transceiver is designed to plug into the SFP port of the GV-POE Switch and is the interface between the switch and optical fiber cables. This product complies with IEEE 802.3z 1000BaseSX/LX standards. The SFP Transceiver is a hot swappable device; you can add or remove the device without powering down.

Specifications

• Network Standard - IEEE 802.3z 1000BaseSX
• Wavelength - 850
• Media - MMF
• Distance - 62.5 / 20 um, 220 / 550 m (722 / 1804 ft)
• TX Power (dBm) - -9.5 ~ -4
• RX Sensitivity (dBm) - Max. -18
• Connector Type - LC
• Operating Temperature - 0 °C ~ 70 °C (32 °F ~ 158 °F)

GV-LC10 Datasheet
