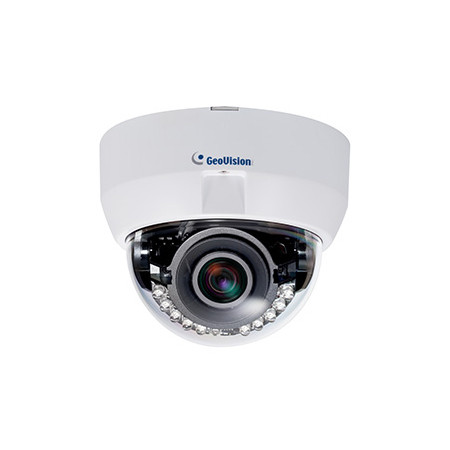

GV-EFD5101 Geovision 3~9mm Varifocal 30 FPS @ 2592 x 1944 Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Features:

Features:

• Model Number: GV-EFD5101
• Manufacturer SKU Number: 84-EFD5101-0010
• Sales Part Number: 110-EFD5101-000
• 1/3.2” progressive scan super low lux CMOS
• Dual streams from H.264 and MJPEG
• Up to 30 fps at 2592 x 1944
• Intelligent IR
• Day and Night function (with removable IR-cut filter)

Specifications

PC Requirements

• CPU - Intel Core i5-4670 @ 3.40GHz
• Memory - DDR3 4GB RAM
• On Board Graphics - Intel HD Graphics 4600 (Versions of driver from year 2014 or later required)

Camera

• Image Sensor - 1/3.2" progressive scan low lux CMOS
• Picture Elements - 2592 (H) x 1944 (V)
• Minimum Illumination - Color: 0.12 Lux Lux B/W 0.10 Lux IR ON 0 Lux
• Shutter Speed - Automatic, Manual (1/5 ~ 1/8000 sec.)
• White Balance -Automatic, Manual (2800K ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 46 dB
• WDR - Yes
• Dynamic Range - Up to 72 dB

Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR-cut filter)
• Focal Length - 3~9mm
• Lens Type - Varifocal
• Maximum Aperature - F/1.7
• Mount - Ø14 mm
• Horizontal FOV - 96° ~ 36°
• Image Format - 1/2.8"
• Operation - Focus: Manual (with lock) Zoom: Manual (with lock) Iris: P-iris
• Max. Torque (Focus / Zoom Screws) - 0.049 N.m
• IR LED Quantity - 20 IR LEDs
• Max. IR Distance - 30 m (98.4 ft)

Operational

• Video Compression - H.264, MJPEG
• Video Streaming - Dual streams from H.264 and MJPEG
• Frame Rate - 30 fps at 2592 x 1944 (60/50 Hz) * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Super Low Lux, Denoise, Metering
• Audio Compression - G.711, AAC (optional)
• Audio Support - Two-Way Audio

Video Resolution

• Main Stream - 4:3 2592 x 1944 (Default), 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240, 16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252, 5:4 1280 x 1024, 640 x 512, 320 x 256
• Sub Stream - 960 x 720 (Default), 640 x 480, 320 x 240 / 16:9 640 x 360, 448 x 252 / 5:4 640 x 512, 320 x 256

Network

• Interface - 10/100 Ethernet
• Ethernet Protocol - DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA

Mechanical

• Temperature Detector - Yes
• Camera Angle Adjustment - Pan 0° ~ 350°, Tilt 0° ~ 75°, Rotate 0° ~ 340°
• Connectors - Power 2-pin terminal block, PoE, Ethernet Ethernet (10/100 Base-T), RJ-45 cable,Audio 1 In (microphone phone jack, 3.5 mm / 0.14”) 1 Out (stereo phone jack, 3.5 mm / 0.14”), TV-Out BNC connector (D1 resolution)
• LED Indicator - 2 LEDs: Power, Status

General

• Environment Temperature - Start-up 32 °F ~ 122 °F, Operation 32 °F ~ 122 °F
• Humidity - 10% to 90% (no condensation)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 5.8 W
• Dimension - 4.92 x 3.92”
• Weight - 1.04lbs
• Regulatory - CE, FCC, RCM, RoHS compliant

Power over Ethernet

• PoE Standard - PoE (IEEE 802.3af Power over Ethernet / PD)
• PoE Power Supply Type - End-Span
• PoE Power Output - Per Port 48V DC, 350 mA. Max. 15.4 watts

Web Interface

• Installation Management - Web-based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Network Storage - GV-System (GV-DVR/NVR), GV-Recording Server, GV-VMS/li>
• Smart Device Access -GV-Eye for iOS and Android
• Live Viewing - IE, Mobile App
• CMS Server support - GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
