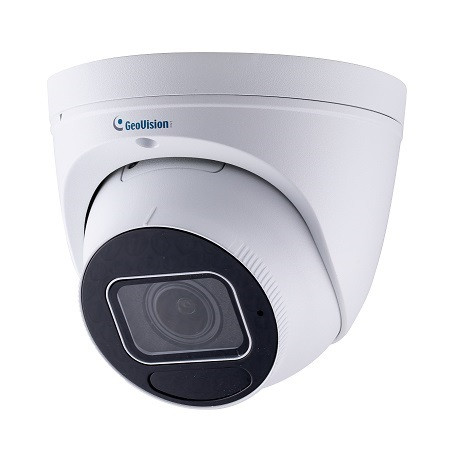

GV-EBD8813 Geovision 2.8~12mm Motorized 20FPS @ 8MP Outdoor IR Day/Night WDR Eyeball IP Security Camera 12VDC/PoE

Features:

• Model Number: GV-EBD8813
• Manufacturer SKU Number: 84-EBD8813-0010
• Sales Part Number: 125-EBD8813-0000
• AI Deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.8" progressive scan super low lux CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Wide Dynamic Range Pro (WDR Pro)
• Min. illumination at 0.003 lux
• Up to 20 fps at 3840 x 2160

The Eyeball Dome IP Camera is an outdoor, network camera equipped with an automatic IR‐cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV‐EBD8813 adheres to IK10 and IP67 standards, and can be powered through PoE.

Specifications

• Image Sensor - 1/2.8" progressive scan super low lux CMOS
• Picture Elements - 3840 (H) x 2160 (V)
• Minimum - Color: 0.003 Lux (F1.5, AGC ON)
• Illumination - IR ON: 0 Lux
• Shutter Speed - Auto / Manual (1 ~ 1/100000 sec)
• White Balance - Auto / Manual
• Gain Control - Auto / Manual
• S/N Ratio - 56 dB
• WDR - WDR Pro
• Dynamic Range - 120 dB

Lens

• Megapixel - 8 MP
• Day / Night - Yes (with removable IR‐cut filter)
• Lens Type - Motorized varifocal lens
• Focal Length - 2.8 ~ 12 mm
• Maximum Aperture - F/1.6
• Mount - Ø 12 mm
• Horizontal FOV - 107° ~ 29°
• Operation
  • Focus - Auto / Manual
  • Zoom - 4.3x Optical Zoom
  • Iris - Fixed
• IR LED Quantity - 2 IR LEDs
• Max. IR Distance - 40 m (130 ft)

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Triple streams
• Frame Rate - 20 fps @ (3840 x 2160), 25 fps @ (3072 x 1728) / (2560 x 1440), 30 fps @ (1920 x 1080) (60 / 50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes)
• Video Analytics - Motion Detection, Tampering Alarm, Audio Detection, *Tampering alarm and audio detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Flicker‐less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format)
• Audio Compression - G.711
• Audio Support - One‐way Audio

Deep Learning Function

• AI Perimeter Protection - Intrusion, Crossing Line, Entering Area, Leaving Area (Human & Vehicle classification)

Video Resolution

• Main Stream - 3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080
• Sub Stream - 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288
• Third Stream (Closed by Default) - 720 x 576, 704 x 288, 640 x 360, 352 x 288

Network

• Interface - 10/100 Ethernet
• Protocol - ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

• Camera Angle
  • Pan - 0° ~ 360°
  • Tilt - 0° ~ 75°
• Adjustment
  • Rotate - 0° ~ 360°
  • Power - DC Jack (DC 12V, 1.25A), PoE
  • Ethernet - RJ‐45
• Connectors
  • Audio - 1 In (built‐in microphone)
  • Local Storage - Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) *UHS‐II card types are not supported

General

• Environment Temperature
  • Start‐up Operation - ‐30°C ~ 60°C (‐22°F ~ 140°F)
• Humidity - 0% ~ 95% (no condensation)
• Power Source - 12V DC / PoE (IEEE802.3af)
• Max. Power Consumption - 8.16W
• Dimensions - Ø 129 x 110 mm (Ø5.1” x 4.3”)
• Weight - 0.67 kg (1.48 lb)
• Ingress Protection - IP67
• Vandal Resistance - IK10 for metal casing
• Regulatory - CE, FCC, RoHS compliant

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or GV‐IP Device Utility
• Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Digital Zoom, Text Overlay, Image Masking
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Web Interface

• Software Supported - GV‐VMS (V17.4.1 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0)
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Browser (IE, Edge, Chrome), Mobile App
