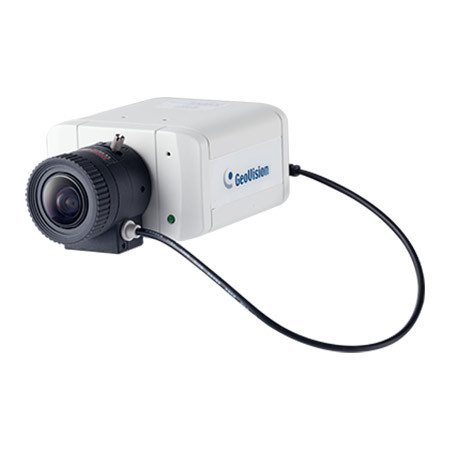

GV-BX2700-FD Geovision 3~10.5mm Varifocal 30FPS @ 1080p Indoor Day/Night WDR Box IP Security Camera 12VDC/PoE

Features:

• Model Number: GV-BX2700-FD
• Manufacturer SKU Number: 84-BX2700V-3D010
• Sales Part Number: 115-BX2700-FD
• 1/2.8" progressive scan super low lux CMOS
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 1920 x 1080
• P-Iris for auto iris adjustment
• Built-in / external microphone
• Two-way audio
• One sensor input and one alarm output
• Mini USB slot for WiFi Adapter or USB hard drive
• Wide Dynamic Range Pro (WDR Pro)
• Face Detection
• 3D noise reduction
• Smart streaming
• Privacy mask
• IP address filtering
• 12VDC / PoE (IEEE 802.3af)

Specifications

Camera

• Image Sensor - 1/2.8" progressive scan super low lux CMOS
• Picture Elements - 1920 (H) x 1080 (V)
• Minimum Illumination - Color: 0.005 Lux , B/W: 0.004 Lux, IR On: 0 Lux
• Shutter Speed - Automatic, Manual (1/30 ~ 1/16,000 sec)
• White Balance -Automatic, Manual (2800 ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 56 dB
• WDR Pro - Yes
• Dynamic Range - 130 dB

Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR‐cut filter)
• Lens Type - Varifocal
• Focal Length - 3~10.5mm
• Maximum Aperature - F/1.4
• Mount - CS Mount
• Image Format - 1/2.7"
• Horizontal FOV - 100°~35°
• Operation - Focus: Manual (w/lock), Zoom: Manual (w/lock), Iris: P-Iris

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Stream 1 from H.265 or H.264, Stream 2 from H.265, H.264 or MJPEG, Stream 3 from H.265, H.264 or MJPEG
• Frame Rate - 50 Hz: 25 fps at 1920 x 1080, 60 Hz: 30 fps at 1920 x 1080
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Low Lux Enhancement, Denoise, Metering
• Audio Compression - G.711, ASS (Optional)
• Audio Support - Two‐Way Audio
• Sensor Input - 1 Input (Dry Contact)
• Alarm Output - 1 Digital Output (200mA 5V DC)

Face Detection

• Environment - 600 lux
• Detectable Face Angle - Tilt (Up/Down) ± 30°, Swing (Left/Right) ± 60°
• Max. Number of Faces - Up to 16
• Min. Face Image Pixel Requirement - 100 x 100

Video Resolution

• Main Stream - 4:3 1280 x 960, 640 x 480 , 16:9 1920 x 1080 (Default), 1280 x 720, 640 x 360, 5:4 1280 x 1024, 640 x 512, 320 x 256
• Sub Stream - 4:3 1024 x 768, 640 x 480, 320 x 240, 16:9 1280 x 720, 640 x 360 (Default), 448 x 256, 5:4 1280 x 1024, 640 x 512, 320 x 256

Network

• Interface - 10/100M Ethernet
• Protocol - DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S), QoS(DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA
• Wireless LAN - IEEE 802.11 b/g/n
• Antenna Type - External
• Security - WEP, WPA‐PSK(TKIP), WPA‐PSK(AES), WPA2‐PSK(TKIP), WPA2‐PSK(AES)
• Security Feature - No default ID and Password, 802.1x authentication, HTTPS with a SSL certificate stored in the camera, 256‐bit AES encryption (requires firmware V1.14 or later working with GV‐VMS V18.1 or later)

Mechanical

• Temperature Detector - Yes
• Connectors - Power 2‐pin terminal block, PoE, Ethernet RJ‐45, Audio 1 In (Externally connecting a microphone) 1 Out (Stereo phone jack, 3.5 mm / 0.14"), Digital I/O 3‐pin terminal block, pitch 2.5 mm (0.1"), Auto Iris Yes (with varifocal lens), Local Storage Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10) *SDXC and UHS‐I card types are not supported, TV‐Out BNC connector, Mini USB GV‐WiFi Adapter or USB hard drive
• LED Indicator - 2 LEDs: Power, Status

General

• Operating Temperature - 32°F ~ 122°F
• Humidity - 10% ~ 90% (non‐condensing)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 12V DC: 4.2 W PoE: 4.9 W
• Dimensions (without lens) - 2.97" x 2.95" x 2.13"
• Weight  - 0.77 lb
• Regulatory - CE, FCC, RCM, LVD, RoHS, TAICS (IoT Cyber Security) compliant

Power over Ethernet

• PoE Standard - PoE (IEEE 802.3af Power over Ethernet / PD)
• PoE Power Supply Type - End‐Span and Mid‐Span
• PoE Power Output - Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Software Supported - GV‐DVR / NVR (V8.7.6 + Patch V8.7.6.2), GV‐VMS (V17.1.0.100 + Patch V17.1.0.17), GV‐Edge Recording Manager Win Version (V1.4.0.0), GV‐Control Center (V3.5.1), GV‐Recording Server (V1.4.2), GV‐Redundant / Failover Server (V1.1.0.0 + Patch V1.1.0.006)
• Smart Device Access -GV‐Eye for iOS and Android
• Live Viewing - Browser (IE, Chrome, Firefox, Safari), Mobile app

GV-BX2700-FD Datasheet
