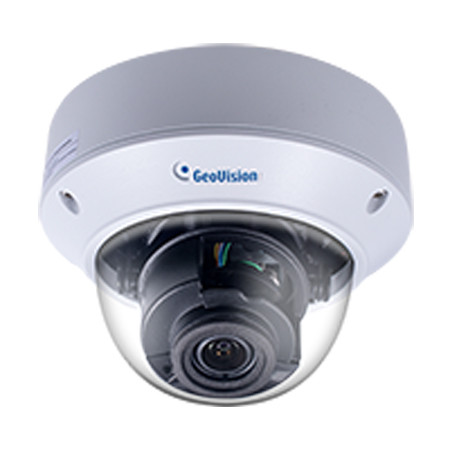

GV-AVD8710 Geovision 2.8~12mm Motorized 15FPS @ 8MP Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/POE

Features:

• Model Number: GV-AVD8710
• Manufacturer SKU Number: 84-AVD871W-0010
• Sales Part Number: 125-AVD8710-000
• 1/2" progressive scan super low lux CMOS
• Min. illumination at 0.003 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 15 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440
• Motorized varifocal lens for remote focus / zoom adjustment

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-AVD8710 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axis pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

Specifications

Camera

• Image Sensor - 1/2” progressive scan super low lux CMOS
• Picture Elements - 3840 (H) x 2160 (V)
• Minimum illumination- Color - 0.003 Lux, IR ON - 0 Lux
• Shutter Speed - Automatic, Manual (1/6 ~ 1/100000 sec)
• White Balance - Auto / Manual
• Gain Control - Auto / Manual
• S/N Ratio - 52 dB
• WDR - Yes
• Dynamic Range - 120 dB

Lens

• Megapixel - 8 MP
• Focal Length - 2.8 ~ 12 mm
• Day/Night - Yes (with removable IR-Cut Filter)
• Lens Type - Motorized varifocal lens
• Maximum Aperature - F/1.5
• Mount - Ø14 mm
• Horizontal FOV - 91°~27°
• Operation - Focus - Automatic / Manual, Zoom - 4.3x Optical Zoom, Iris - Fixed
• IR LED Quantity - 2 IR LEDs
• Max. IR Distance - 30 m (98.4 ft)

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Triple streams
• Frame Rate - 15 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440 (60 / 50 Hz)
• Audio Compression - G.711
• Audio Support - Two-way audio
• Video Resolution
  • Main Stream- 3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080
  • Sub Stream- 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 360, 352 x 288
  • Third Stream (Closed by Default) - 720 x 576, 704 x 288, 352 x 288

Network

• Interface - 10/100 Ethernet
• Protocol - DynDNS, DHCP, FTP, HTTP, HTTPS, IPv4, ICMP, L2TP, NTP, PPPoE, RTP, RTSP, SMTP, SIP, TCP/IP, UDP, ONVIF (Profile S)

Mechanical

• Camera Angle Adjustment
  • Pan - 0° ~ 360°
  • Tilt - 0° ~ 80°
  • Rotate - 0° ~ 360°
• Connectors- Power: DC Jack (DV 12V, 1.25A) , PoE, Ethernet: RJ-45, Audio: 1 in (Audio In Wire); 1 out (Audio Out Wire), Digital I/O: 4-pin terminal block pitch 3.5 mm (0.14"), Local Storage: Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) * UHS-II card type is not supported, TV-Out: BNC connector

General

• Environment Temperature - -40°C ~ 60°C (-22°F ~ 140°F)
• Humidity - 0% to 95% (no condensation)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 8 W
• Weight - 0.75 kg (1.7 lb)
• Dimensions (without lens) - Ø148 x 111.3 mm (Ø5.8" x 4.4")
• Ingress Protection - IP67
• Vandal Resistance - IK10 (for metal casing)
• Regulatory - FCC, UL, CE, RoHS compliant

Web Interface

• Installation Management - Web-based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay, Digital PTZ
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish

Applications

• Software Supported - GV-DVR / NVR (V8.7.4.0), GV-VMS (V17.1), GV-Control Center (V3.5.0.0), GV-Edge Recording Manager (V1.3.0.0), GV-Recording Server / Video Gateway (V1.4.0.0), GV-Redundant / Failover Server (V1.1.0.0)
• Smart Device Access - GV-Eye for iOS and Android
• Live Viewing - Brower (IE, Chrome, Firefox, Safari), Mobile app
• CMS Server support - GV-Control Center, GV-Center V2, GV-Vital Sign Monitor

GV-AVD8710 Datasheet
