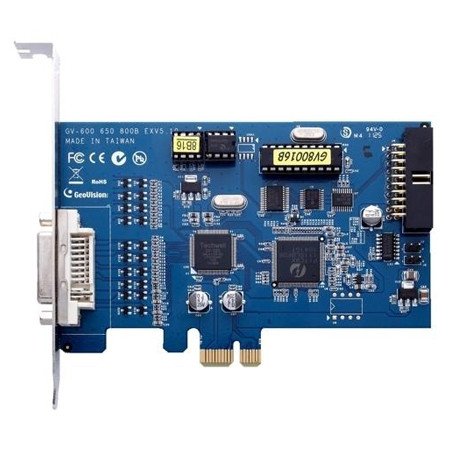

GV-650B-16-X Geovision 16 Channel 60FPS PCI-Express B DVR Card DVI-Type - 55-G65EX-160

Features:

Features:

• Model Number: GV-650B-16-X
• Model Number: GV650-16
• Manufacturer SKU Number: 55-G65EX-160
• Sales Part Number: 310-G65EX-160
• Includes Latest Version of Authentic Geovision Software, Hardware, and Drivers
• 16 Video Inputs / 4 Audio Inputs
• Includes free NVR licensing for Geovision IP cameras - up to 32 combined channels!
• 60fps viewing/recording
• Includes DVI-Type Sub Connector Cables for Camera and Audio Connections
• Includes Full Manual and Retail Packaging
• Also available in a Custom Built PC based DVR

GV-650B Card provides up to 16 video channels and 4 audio channels, recording up to 60 / 50 fps (NTSC / PAL) in total with H.264 software compression.

Specifications

• Interface - PCI-E (x1)
• Input Type - DVI
• Video Input - 4, 8, 16 Cams
• Audio Input - 4 Channels
• Recording Rate
  • CIF
    • NTSC - 4-port: 60 fps, 16-port: 60 fps
    • PAL - 4-port: 50 fps 16-port: 50 fps
  • D1
    • NTSC - 4-port: 60 fps 16-port: 30 fps
    • PAL - 4-port: 50 fps 16-port: 25 fps
• Display Rate
  • CIF
    • NTSC - 4-port: 60 fps 16-port: 60 fps
    • PAL - 4-port: 50 fps 16-port: 50 fps
  • D1
    • NTSC - 4-port: 60 fps 16-port: 30 fps
    • PAL - 4-port: 50 fps 16-port: 25 fps
• Video Resolution
  • NTSC - 704x480, 704x480 De-interlace, 640x480, 640x480 De-interlace, 352x240, 320x240
  • PAL - 704x576, 704x576 De-interlace, 640x480, 640x480 De-interlace, 352x288, 320x240
• Video Compression Format - Geo MPEG4, Geo H264
• Audio Format - 16 kHz / 16-bit, 32 kHz / 16-bit)
• GV-NET/IO Card Support - Yes
• Dimensions (W x H)PCI-E - 120 x 82 mm / 4.7 x 3.2 in
