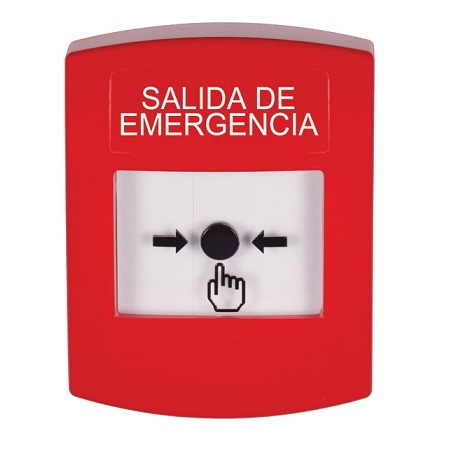

GLR001EX-ES STI Red Indoor Only No Cover Key-to-Reset Push Button with EMERGENCY EXIT Label Spanish

Features

• Color Option: Red
• Cover Option: Indoor Only No Cover
• Switch Configuration Option: Key-to-Reset
• Label Text Option: Emergency Exit
• Label Language Option: Spanish
• Latching resettable push button simulates break glass activation with no broken glass
• An indicator drops into view at the top of the window upon activation, the unit simply resets with a keyand is immediately ready for re-use
• Activation push button has glass appearance but is shatterproof polycarbonate
• Offers the user the benefits and environmental advantages of a resettable element
• Easy installation with no glass elements that could be broken or incorrectly fitted
• Versatile mounting plate hole pattern fits North American single-gang, double-gang and four square electrical boxes, and European single-gang electrical box
• Three year guarantee against breakage of polycarbonate in normal use, one year on electromechanical and electronic components
• External dimensions: 5.43" H x 4.13" W x 1.31" D
• 2 Form "C" contacts rated 5A @ 30 VAC
• 1A @ 42 VDC

The GLR Series has a unique latching resettable push button that simulates break glass activation with no broken glass. It is safe to use in areas where glass cannot be used such as food processing plants and common areas. As the units can be simply reset with a key, they provide an ideal solution for locations that suffer from a high number of false activations such as schools, shopping centers and public areas.

Specifications

• Switch Configuration - DPDT Key-to-Reset
• Electronics - 2 Form "C" contacts rated 5A @ 30 VAC, 1A @ 42 VDC
• External Dimensions - 5.43" H x 4.13" W x 1.31" D
