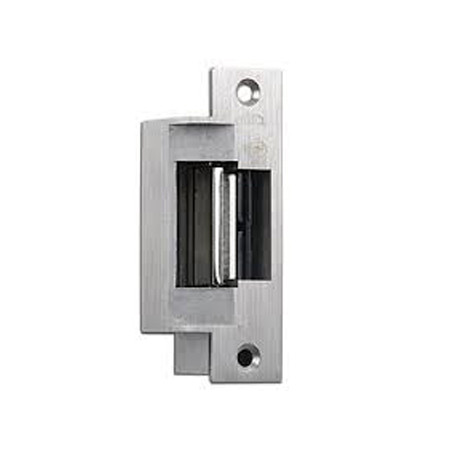

F4104-08 x 32D Rutherford control 24VAC/DC Fail Locked, Fire Labeled x 32D

Features:

• ANSI-size faceplate (1-1/4" x 4-7/8")
• Accommodates 3/4" latch projection(pullman design not included)
• 1-1/2" cut-out depth accommodates most aluminum and hollow metal frames
• Use with wide range of door thicknesses (1-3/8" to 2-3/8")
• AC/DC input acceptable for all fail locked models.
• Fully reversible for right or left-hand doors
• Standard mounting tabs and fasteners included
• Unique anti-vibration design prevents manipulation by vibration

The F4 Series Electric Strikes are RCI’s answer to the need for extra-strength in heavy-duty applications and is fire labeled. Unique anti-vibration design prevents manipulation by vibration. Crossed wires are never a problem as the coil is not polarity-conscious.

Specifications

• Model(s) - F4104-08 x 32D
• Mode - Fail Locked
• Code - 5
• Voltage - 12V
• Current - AC:DC
• Duty - Intermittent:Continuous
• Sound - Buzz:Silent
• Amps* - 0.15/0.20
• Ohms† - 61

F4104-08 x 32D Specifications PDF

Dormakaba RCI 4 Series Centerline Strikes Ordering Guide PDF
