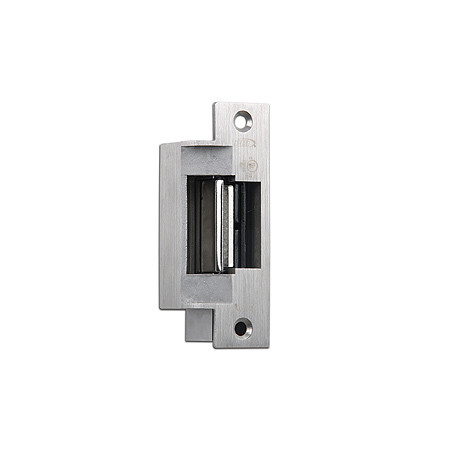

F1114-05 X 32D Dormakaba RCI Fail Locked Fire Labeled 12VAC/DC x 32D

Features:

• Accommodates 1/2" (12.7mm), 5/8" (15.9mm), or 3/4" (19.1mm) latch projection (Pullman design not included)
• Horizontal adjustment (up to 1/4" or 6.4 mm) relieves side-load pressure, ensuring proper latch alignment
• "Saddle-mount" housing design for enhanced strength and durability
• Unique "Anti-Vibration"design prevents manipulation by vibration
• Tamper-resistant "Pry-Guard" concealed behind the door frame increases strength and prevents manipulation by tool attack
• Heavy duty solid cast stainless steel housing design (32D)
• Crossed wires are not a problem, as coil is not polarity sensitive
• Energy efficient coil design

The strength and durability of our F1 Series Electric Strikes make them ideal for Fire Rated or heavy-duty applications.The F1 Series Electric Strikes is designed with a unique built-in anti-vibration feature, a saddle mounted housing and a tamper resistant "Pry-Guard" for increased strength and tamper-resistance.

Specifications

• Model(s) - F1114
• Mode - Fail Locked
• Code - 05
• Voltage - 12V-12V
• Current - AC; DC
• Duty - Intermittent; Continuous
• Sound - Buzz; Silent
• Amps - 0.15/0.20
• Ohms - 61

F1114-05 X 32D Spec Sheet

Dormakaba RCI F1 Series Centerline Strikes Ordering Guide PDF
