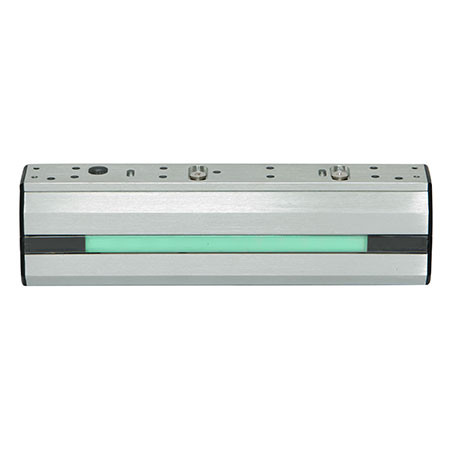

EW8310 x 28 Dormakaba RCI Early Warning Electromagnetic Lock

Features:

• Built-in sensor will activate a local and/or remote alarm upon attempted forced entry - before the door has been compromised
• Unique highly visible "Red/Green" light panel indicates status of door (local)
• Built-in Security Condition Sensor (SCS) feature indicates that the door is closed, bonded and that the Electromagnetic Lock is functioning normally
• Dry contact relay switching (SPDT and DPDT) provided for local and/or remote alarm monitoring
• Auto sensing voltage from 12 to 24 VDC
• Up to 1200lbs (540kg) holding force
• Low voltage detection
• Nuisance delay feature accomodates accidental triggering

The EW8310 is more than an Electromagnetic lock, it can also sense when an intruder is attempting to gain access into a building through a locked door. The patented built-in sensor detects attempted forced entry and activates a local and/or remote alarm prior to the integrity of the door being compromised; well before the break-in has occurred.

An alarm in the immediate location will ward off would be thieves before they have a chance to gain access. The light panel provides highly visible information related to the status changes of the door. For example, it works as a status indicator when the door is secure or notifies if an attempted break-in has occurred.

Specifications

• Housing Dimensions - 2-1/8"D x 2-7/8"H x 10-13/16"L (54mm x 73mm x 275mm)

Armature Plate Dimensions:

• 5/8" D x 2-3/8" H x 7-7/16"L (16mm x 60mm x 189mm)

Voltage:

• Auto sensing voltage 12 to 24 VDC
• Tolerance 10%

Power/Current Requirements:

• Max 0.58A @ 12VDC Max 0.29A @ 24VDC
• Local Alarm Output: SPDT 1.0A 120VAC, 2A 30VDC
• Remote Alarm Output: DPDT: 1.0A 120VAC, 2A 30VDC

Holding Force:

• Up to 1200lbs (540kg) pounds

Operating Temperature:

• Circuit board operating temperature 14F to 140F (-10C to 60C)
• Not for use in outdoor environments.
