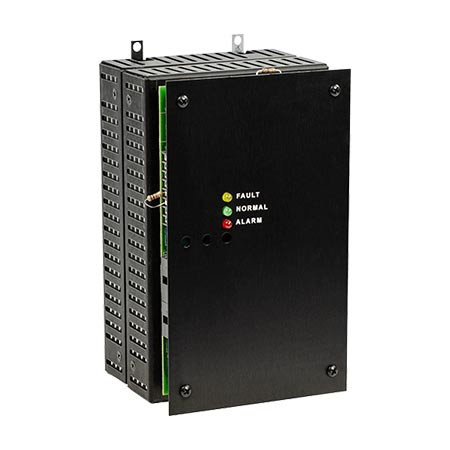

EVX-50E Evax by Potter 50 Watt Expander Module - No MIC or DMR

Features:

• Model Number: EVX-50E
• 25, 50, or 100 Watt Voice Evacuation Expander
• Microphone capable for voice communication
• Temporal whoop alarm tone
• Built-in power supply with battery charger
• 25 or 70 VRMS operation - field selectable with no additional parts required
• Power expansion of any Evax System
• Available as Expander Panels (model number EVAX Series), or as Expander Modules (model number EVX Series)

The Evax Systems Voice Evacuation System Expander Panels and Modules provide an easy and cost-effective way to increase the output power of an EVAX 25W voice evacuation system.

Specifications

• Primary Power - 24-30V AC/DC
• Current - 1.00A Alarm, 0.13 Standby
• Avg. Current Draw in Alarm - 1.0 A, 3.2A peak
• Output - 50 Watts
• Backbox Dimensions (WxHxD) - 14.5”x 18”x 4”
• Color - Charcoal Grey (Standard), Red (Optional)

EVX-50E Datasheet
