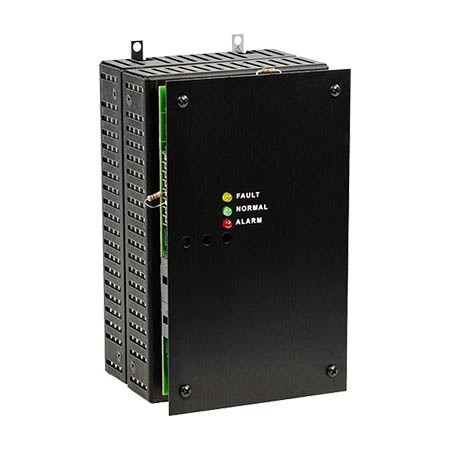

EVX-100EM Evax by Potter 100 Watt Expander Module With Microphone

Features:

• Model Number: EVX-100EM
• 25, 50, or 100 Watt Voice Evacuation Expander
• Temporal whoop alarm tone
• Built-in power supply with battery charger
• 25 or 70 VRMS operation - field selectable with no additional parts required
• Power expansion of any Evax System
• Available as Expander Panels (model number EVAX Series), or as Expander Modules (model number EVX Series)

The Evax Systems Voice Evacuation System Expander Panels and Modules provide an easy and cost-effective way to increase the output power of an EVAX 25W voice evacuation system.

Specifications

• Primary Power - 24-30V AC/DC
• Current - 2.50A Alarm, 0.18 Standby
• Avg. Current Draw in Alarm - 2.5 A, 6.4A peak
• Output - 100 Watts
• Backbox Dimensions (WxHxD) - 14.5”x 18”x 4”
• Color - Charcoal Grey (Standard), Red (Optional)

EVX-100EM Datasheet
