EVT-AB1Q Seco-Larm Active Video Balun Set - Includes One Transmitter

Features:

• Active operation The transmitter amplifies the video signal for excellent picture quality at long distances.
• Transmits video signal up to 1.5 miles (2.4km).
• Uses low-cost CAT 5e unshielded twisted pair (UTP) cable instead of costly coaxial cables.
• Includes BNC connectors and removable terminal blocks No need to waste time crimping RJ-45 connectors.
• High immunity from interference Built-in-impedance coupled device and noise filter.
• Easy installation.
• 300mA DC output on transmitter.
• Includes 12VDC power adapters.

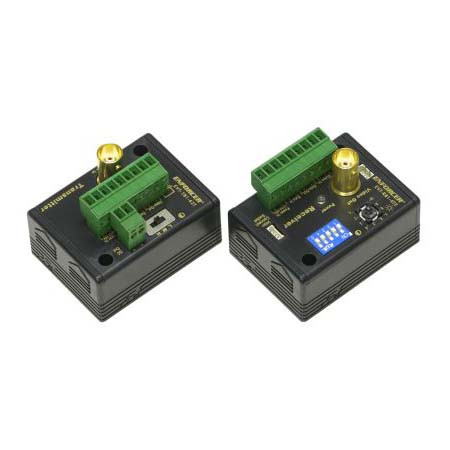

The active (amplified) video balun transmits video signals of a CCTV camera long distances over low-cost CAT 5e cable. Suitable for full-motion color and monochrome cameras; adjustable for maximum picture quality. A built-in data port allows the transmission of PTZ signals.

Specifications

• Range
  • Color 5,000' (1524m)*
  • B/W 8,000' (2438m)
• Video format - RS170, NTSC, PAL, SECAM, CCIR
• Video input - 1Vp-p, 75 ohms, BNC connector
• Data - RS422/RS485, 4-ports
• Cable type - CAT 2 or better (best if CAT 5e)
• Blue LED - Power on/off
• Adjustments
  • Tx - 3 positions
  • Rx - 5 dip switches (32 combinations)
• Insertion loss - < 2dB per pair from DC ~ 5Hz
• Return loss - >15dB from DC ~ 5MHz
• Frequency response - DC ~ 5MHz
• Attenuation - DC ~ 5Hz, 1.5dB max.
• Common mode rejection - 60dB
• Power: - 12/24 VDC, 12VDC adapter included
• Power consumption: - 40mA Tx, 60mA Rx @ 12VDC
• Surge protection (video)
  • Surge ratings IPP: 100 Amp at
  • 10us x 1000us. Maximum Peak
  • Current: 250 Amp at
  • 8us x 20us,
  • Transient Volt. Surge Suppressors
• Temperature range - 7~329 F (-14~165 C)
• Humidity range - 0~95%
• Impedance: (BNC) - 75W, (terminal): 100W
• Case - ABS plastic
• Weight (without adaptors) - Tx 3.4 oz. (95g), Rx 3.0 oz. (84g)
