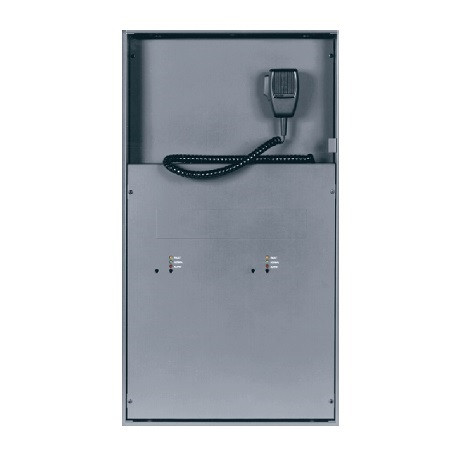

EVAX-200-16Z Evax by Potter 200 Watt Voice Evacuation Panel with DMR and 16 Class B Speaker Zones - Gray

Features:

• Model Number: EVAX-200/16Z
• Clean Dead-front Construction
• 8 Megabyte MP3 driver
• 25 or 70 VRMS Field Selectable Class A / B Speaker Circuit
• 120 VAC Power Supply and Battery Charger
• Live Microphone Override of Message and Tone
• Analog Addressable Compatible
• High Reliability, No Maintenance, Fully Supervised
• Easy Installation and Operation

The EVAX-200 panel provides 200W of speaker power. Speaker zones can be configured for general alarm or alarm by zone operation as required. Digital message repeater, microphone, 120 VAC power supply and battery charger are all built in. The EVAX Series voice evacuation can be configured for Churches, Restaurants, Movie Theaters, Auditoriums, and High Rise buildings.

Specifications

• Primary Power - 1A @ 120VAC
• 24VDC Battery Power - 0.16 Standby, 0.6 Alarm
• Output - 100 Watts @ 25/70 VRMS
• Backbox Dimensions (WxHxD) - 14.5” x 27” x 4”
• Color - Charcoal Grey (Standard), Red (Optional)

EVAX-200-16Z Datasheet
