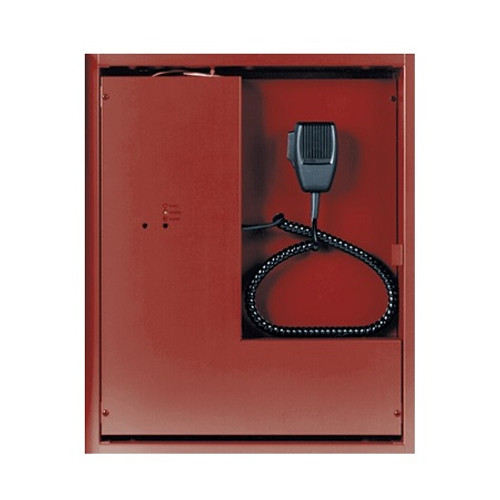

EVAX-100R-4Z Evax by Potter EVAX 100 Panel with 4 Class B Speaker Zones - Red

Features:

• Model Number: EVAX-100R-4Z
• Clean Dead-front Construction
• 8 Megabyte MP3 Driver
• 100 Watt Bullet-Proof Amplifier
• 25 or 70 VRMS Field Selectable Class A / B Speaker Circuit
• 120 VAC Power Supply and Battery Charger
• Live Microphone Override of Message and Tone
• Analog Addressable Compatible
• High Reliability, No Maintenance, Fully Supervised
• Also sold and branded under Potter Model Number: 3500004

The EVAX-100 panel operates with any Fire Alarm Control Panel (FACP) and provides 100 Watts of speaker power. The EVAX panel has its own power supply and battery charger. The panel must be wired with 120 VAC and standby batteries connected. The EVAX panel is housed in a surface or semiflush mounted backbox with a hinged and key locked door.

Specifications

• Primary Power - 1.0 A @ 120VAC
• 24VDC Battery Power - 0.16A Standby, 0.6A Alarm
• Output - 100 Watts @ 25/70 VRMS
• Backbox Dimensions (WxHxD) - 14.5 x 18 x 4"
• Color - Charcoal Grey (Standard), Red (Optional)
