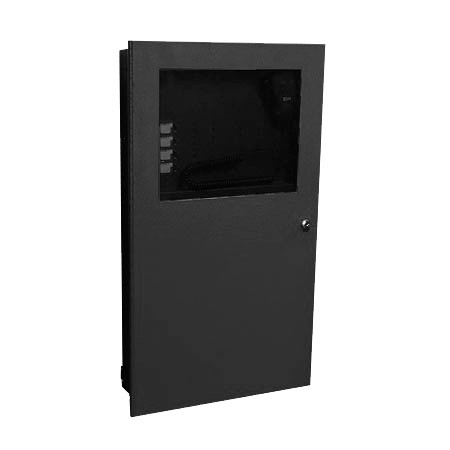

EVAX-100M/4Z EVAX by Potter 100 Watt Mass Notification Panel 4 Class B Speaker Circuits - Gray

Features:

• Model Number: EVAX-100M/4Z
• 100W Mass Notification System
• Expandable to 2000W
• Listed to UL864/UL2572
• Digitally Recorded EVAC/MNS Messages/Tones
• Live Microphone Override of Message and Tones
• 25 or 70 VRMS Field Selectable
• Up to 30 LOCs
• Optional Switch/Zone/Inputs/Output cards

The EVAX-100M provides a Mass Notification System with maximum flexibility to meet the needs of almost any application. The EVAX-100M contains one (1) 100 Watt amplifier while the EVAX-200M contains two (2) 100 Watt amplifiers.
The 100/200M can operate as a standalone system or tie into a fire alarm control panel, where fire and MNS are required. Separate output controls make dual strobe control simple. Optional cards allow for zoning, message, input and output control.
LOCs enable systems to have up to 30 remote control locations. Any function in the system is available at the Primary, ACU or the LOC locations.

Specification

• Primary Power - 120VAC @ 2A
• 24VDC Battery Power
  • 0.18A Standby
  • 2.5A Alarm
• Amplifier Output - 100 Watts @ 25/70 VRMS Tone and Voice
• Backbox Dimensions (WxHxD)- 14.5” x 27” x 4”
• Color
  • Charcoal Grey
  • Red (optional)
