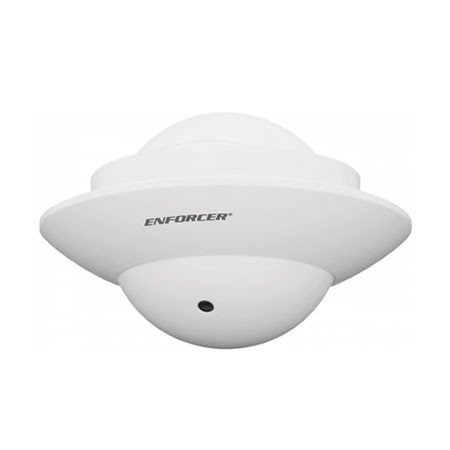

EV-Y6201-A3WQ Seco-Larm 3.7mm 1080p Indoor/Outdoor Day/Night Flush-Mount Discreet UFO Dome HD-TVI/HD-CVI/AHD/Analog Security Camera 12VDC

Features:

• 1080p Resolution
• 3.7mm Pinhole lens rotates to nearly any angle for flexible installations
• 3D-NR (3D Digital Noise Reduction)
• DWDR (Digital Wide Dynamic Range)
• Low 0.1Lux ratings
• Joystick OSD control for easy camera programming
• Small size protrudes only 1" (26mm)
• Weatherproof (IP66) construction
• Low-profile design blends in with nearly any decor

Specifications:

• Housing Color - White
• Type - Flush-Mount UFO Camera
• CMOS - 1/2.9" 2MP Sony CMOS
• Formats - TVI (default) / CVI / AHD / Analog
• Resolution (HD) - 1920 x 1080
• Viewing Angle - 80°
• TV Lines (Analog) - 1200TVL
• 3D-NR - Yes
• 2D-NR - Yes
• DWDR - Yes
• Cable OSD Control - Yes
• On Screen Display (OSD) - Yes
• Megapixels - 2MP
• Minimum Illumination - 0.1Lux
• Video Output - 1.0Vp-p Complex video output
• FPS - 30FPS
• Lens - 3.7mm Pinhole lens
• F Stop - F1.4
• S/N Ratio - 50dB
• DSS (Digital Slow Shutter) - Yes
• Shutter Control - Auto/Manual (x30~1/50000), FLK
• Operating Voltage - 12VDC
• Current Draw - 90mA
• Gamma Correction - 0-1
• Gain Control - Yes
• White Balance - Auto, Day & Night
• IP Rating - IP66
• Operating Temperature - -4°~131°F
• Dimensions - 3"x3"x1" (Protruding from wall)
• Weight - 9.9-oz

EV-Y6201-A3WQ Datasheet

EV-Y6201-A3WQ Manual
