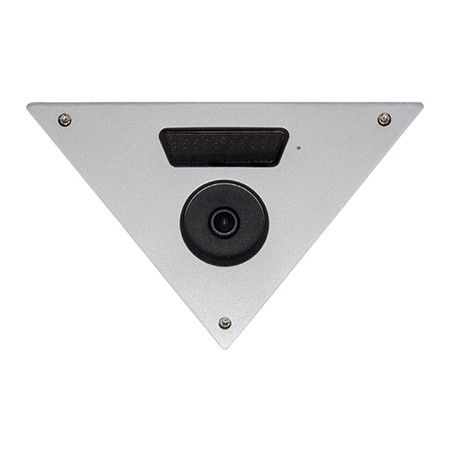

EV-Y4201-A2SQ Seco-Larm 2.9mm 30FPS @ 1080p Outdoor Day/Night Corner-Mount HD-TVI/HD-CVI/AHD/Analog Security Camera 12VDC

Features:

• Select between multiple formats: TVI, CVI, AHD, and Analog
• 1/2.9" 2MP Sony CMOS
• Full HD (1920x1080) resolution
• True Day & Night function with ICR mechanism
• 3D-NR (3D Noise Reduction)
• DWDR (Digital Wide Dynamic Range)
• Built-in internal joystick OSD control
• Vandal-resistant metal front panel
• Weatherproof (IP65)
• 30 Covert IR LEDs for discreet monitoring

• Housing color - Silver
• Type - Corner-Mount Camera
• Formats - TVI (default) / CVI / AHD / Analog
• CCD - 1/2.9” 2.MP Sony CMOS
• Resolution - 1920x1080
• TV Lines (Analog) - 1200TVL
• Onboard OSD control - Yes
• Megapixels - 2MP
• Lens - 2.9mm
• Viewing angle - 130°
• # of IR LEDs - 30 (940nm LEDs)
• IR Range - Up to 82ft (25m)
• FPS - 30FPS
• F Stop - F1.8
• Minimum illumination - (IR On) 0Lux, (IR Off) Color: 0.2Lux/F1.8, B/W: 0.02Lux/F1.8
• Gamma correction< - 0-1
• S/N Ratio - 50dB
• DSS (Digital Slow Shutter) - Yes
• Shutter control - Auto
• Gain control - Auto
• White balance - Auto, Day & Night
• Operating voltage - 12VDC
• Current draw - (IR On) 400mA, (IR Off) 80mA
• IP Rating - IP65
• Operating temperature - 14°~122° F
• Dimensions - 7 1/2" x 5 1/2" x 11 1/16"
• Weight - 13.75-oz

EV-Y4201-A2SQ Datasheet
