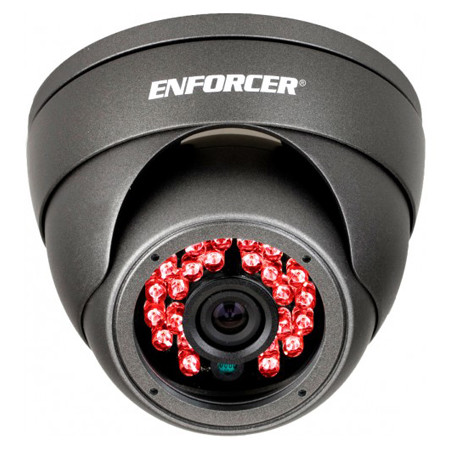

EV-Y2201-A2GQ Seco-Larm 2.8mm 30FPS @ 1080p Outdoor IR Day/Night Rollerball HD-TVI/HD-CVI/AHD/Analog Camera 12VDC - Gray

Features:

• 1080p Resolution
• 2.8mm ICR for a wide viewing angle
• 3D-NR (3D Digital Noise Reduction)
• DWDR (Digital Wide Dynamic Range)
• 24 IR LEDs for low-light situations
• Joystick OSD control for easy camera programming
• Heavy-duty vandal-resistant design
• Weatherproof (IP65) construction

Specifications

• Housing Color - Gray
• Type - Fixed Rollerball Camera
• CMOS - 1/2.9" 2MP Sony CMOS
• Formats - TVI / CVI / AHD / Analog (TVI Default)
• Resolution (HD) - 1920x1080
• Viewing Angle - 90°
• TV Lines (Analog) - 1200TVL
• 3D-NR - Yes
• 2D-NR - Yes
• DWDR - Yes
• Cable OSD Control - Yes
• On Screen Display (OSD) - Yes
• Megapixels - 2MP
• Minimum Illumination - IR On - 0Lux
• Minimum Illumination- LEDs off - Color: 0.1Lux/F1.4, B/W: 0.01Lux/F1.4
• IR Range - Up to 50ft (15m)
• Video Output - 1.0Vp-p complex video output
• FPS - 30FPS
• Lens - 2.8mm ICR
• F Stop - F1.4
• No. of IR LEDs - 24
• S/N Ratio - 50dB
• DSS (Digital Slow Shutter) - Yes
• Shutter Control - Yes
• Operating Voltage - 12VDC
• Current Draw - ON: 150mA, OFF: 80mA
• Gain Control - Yes
• White Balance - Auto, Day & Night
• IP Rating - IP65
• Operating Temperature - -4°~131° F (-20°~55° C)
• Dimensions - 3-11/16" x 2-15/16" (93 x 75 mm)
• Weight - 13.1-oz (370g)

EV-Y2201-A2GQ Datasheet
