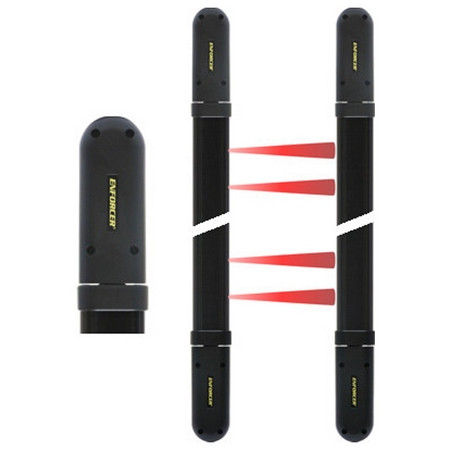

E-9643-4B190Q Seco-Larm Long-Range Barrier Sensor Four Pairs of Beams Black Enclosure

Features:

• Long sensor range up to 190ft (600m) outdoors, 380ft (120m) indoors
• Programmable for 4 different frequencies to reduce interference between multiple units
• Programmable response time (150/300/450/600 ms)
• Built-in heater (activates at 41^ºF (5^ºC))
• LED and buzzer alignment indicators
• For indoor or outdoor perimeter security
• End caps swivel for easy installation
• Programmable immediate trigger on simultaneous breaking of beams, or trigger after a single pair of beams is broken for at least 2 seconds

Specifications

Sensors

• Type - Long-Range Barrier Sensors for Indoor/Outdoor Access Control - Up to 380ft (120m)
• Number of Beams - 2 pairs
• Sensing Range - Outdoor- 190' (60m), Indoor- 380' (120m)
• Buzzer Active Current - 20mA@12VDC (Rx Only)
• Heater Active Current - 160mA@12VDC (Rx+Tx)
• Rx Standby Current - (buzzer off) 66mA, heater off (+/-25%@12VDC)
• Rx Trigger Current - (buzzer on) 66mA, heater off (+/-25%@12VDC)
• Tx Standby & Active Current - 56mA, heater off (+/-25%@12VDC)
• Input voltage - 12~24 VDC
• Operating Voltage - 12~24VDC
• Response Time - 150/300/450/600 ms (DIP switch programmable)
• LEDs - Red - Alignment LED (Rx only), ON - beam is broken / OFF - aligned
• Detection System - Triggers as programmed when any 2 adjacent pair of beams are broken, or any single pair of beams is broken for over 2 sec. (programmable by JP2)
• Alarm Output - NO/NC/COM, relay output, active for 1 sec. when triggered
• Tamper Output - 1A@120VAC / 1A@24VDC (Tx & Rx)
• Alignment Angle - Horizontal +/-90º
• Enclosure - IP65
• Operating Temperature - -49º~131º F (-45º~55º C)
• Operating Humidity - 0~95%
• Length - 26" (66cm)
• Weight - 5.5-lb (2.5kg) [with brackets]
• Dimensions - 1-7/8" x 2-1/4" (49 x 55 mm) [Width x Height]
• Material/Case - Aluminum housing / PC anti-UV cover / ABS end capsh
