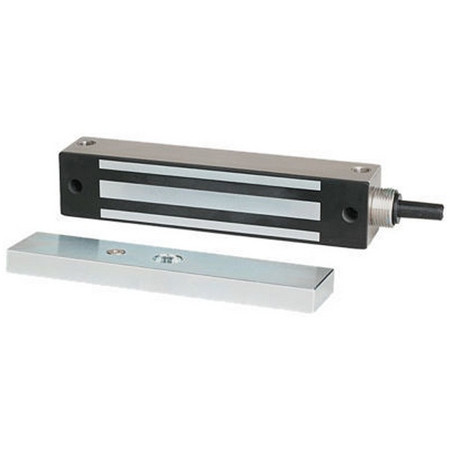

E-946FC-600Q Seco-Larm Electromagnetic Gate Lock with 600-lb Holding Force
$202.90
- Brand
- Seco-Larm
- SKU:
- E-946FC-600Q
Features:
- Face and surface mounting
- For indoor & outdoor applications
- For sliding or swinging gates
- Water resistant and vandal resistant
- Maintenance-free, factory-sealed design
- Dual-threaded conduit fitting
- Attractive stainless-steel housing
- 3ft (91cm) Hookup cord
Specifications
- Holding force - 600-lb (272kg)
- Operating voltage - 12VDC or 24VDC
- Current draw
- 12VDC - 500mA
- 24VDC - 250mA
- Operating temperature - 14°~131° F (-10°~55° C)
- Dimensions
- Magnet - 8x111/16x19/16 (203x43x40 mm)
- Armature plate - 71/4x15/8x9/16 (185x41x14 mm)
- Weight (Approx.) - 6.00-lb (2.7kg)
