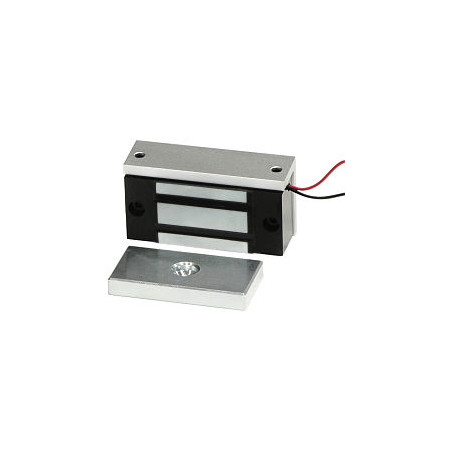

E-941SA-80Q Seco-Larm 80lb Electromagnetic Lock

Features:

• Suitable for small, low-security doors including cabinets and drawers.
• Holding force: 80-lb (36kg).
• 12~24VDC.
• No residual magnetism.
• Detachable mounting bracket for easy installation.
• MOV surge protection.
• CE listed.
• RoHS compliant.

Specifications:

• Model Number - E-941SA-80Q
• Holding force - 80-lb (36kg) @ 12VDC / 110-lb (51kg) @ 24VDC
• Operating voltage - 12 or 24 VDC±10%
• Current draw - 85mA@12VDC, 165mA@24VDC
• Temperature - 14º~131º F (-10º~55º C)
• Magnet size - 2-3/4"x1-1/4"x3/4" (70x31x19 mm)
• Armature size - 2-3/8"x1-1/4"x3/8" (60x31x9 mm)
• Unit weight (approx.) - 14.4-oz (410g)
• Certification - CE
• RoHS compliant - Yes
