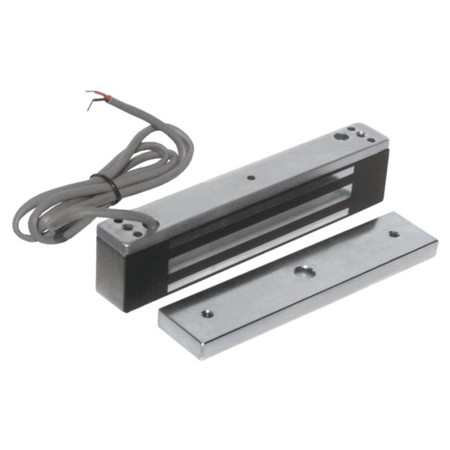

E-941SA-300 Seco-Larm Weatherproof 300lb. Electromagnetic Lock

Features:

• Perfect for cabinets, small enclosures, or pedestrian gates.
• Holding force: 300-lb (136kg).
• 12VDC operation.
• Anodized aluminum housing.
• No residual magnetism.
• Detachable mounting bracket for easy installation.
• MOV surge protection.
• Complete mounting hardware included.
• 36" (91cm) hookup wire included.
• Weatherproof for indoor/outdoor use.
• CE listed.
• RoHS compliant.

Specifications:

• Model Number - E-941SA-300
• Holding force - 300-lb (136kg)
• Operating voltage - 12VDC±10%
• Current draw - 315mA@12VDC
• Temperature - 14º~131º F (-10º~55º C)
• Magnet size - 6-3/4"x1"x1-1/4" (170x23x32 mm)
• Armature size - 6"x3/8"x1-1/4" (152x10x32 mm)
• Certification - CE
• RoHS compliant - Yes
• Unit weight (approx.) - 2-lb 13.5-oz (1.29kg)

E-941SA-300 Datasheet

E-941SA-300 Manual
