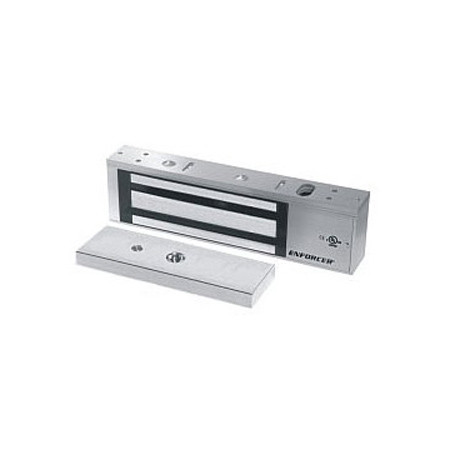

E-941SA-1K2PD Seco-Larm 1200 lb. (545 kg) Electromagnetic Lock w/ Bond Sensor and Timer

Features:

• Anodized aluminum housing (US 28).
• 12 or 24 VDC (selectable).
• No residual magnetism.
• Adjustable mounting bracket.
• MOV surge protection.
• Complete mounting hardware for typical installations.
• "L", "Z" & "U" brackets available for easy mounting.
• Detachable face plate.
• UL and ULC listed (E-941SA-1200 & E-941SA-1K2PQ only).
• CE listed.
• RoHS compliant.
• Built-in dual-color status LED and bond sensor to show locking status:
  • Green - Door is closed and locked
  • Red - Door not closed and/or locked
  • Off - Door in use / no power
• Built-in adjustable door-relock timer, 1~78 sec.

Single-door Electromagnetic Lock with 1,200-lb (545kg) holding force. Two-colored LED, status sensor relay O/P, delay timer (1~78 seconds).
