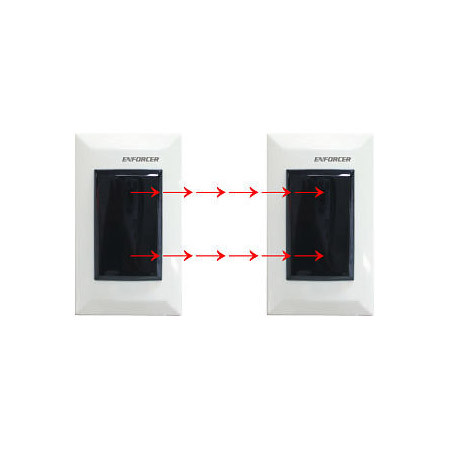

E-932-D33TBQ Seco-Larm Flush-Mount Photoelectric Through-Beam Sensor
(No reviews yet)
Write a Review
Write a Review
Seco-Larm
E-932-D33TBQ Seco-Larm Flush-Mount Photoelectric Through-Beam Sensor
$98.00
- Brand
- Seco-Larm
- SKU:
- E-932-D33TBQ
Features:
- Fits single-gang box.
- Adjustable alignment angle from ±15 degrees horizontally/vertically.
- Response Time: 10msec.
- Alarm Output: Contact 1Amp@120 VAC/DC
- Voltage 12~18 VDC
- Current: 50mA Max.
- 4-3/4"x2-3/4"x1-1/2" (120x70x38 mm)
Specifications:
- Model Number - E-932-D33TBQ
- Type - Dual thru beam
- Sensing Range - 33ft (10m)
- LEDs
- TX Red (on): Power
- RX Red (off): Aligned
- RX Red (on): Out of alignment
- Supply Voltage - 12~18V AC/DC
- Current Drain - 50mA max.
- Response Time - 10ms
- Light Source - IR LED
- Output - (NC/NO/COM)
- Switching Capacity - 1A@120V (AC/DC)
- Ambient Temp - 14º~122º F (-10º~50º C)
- Alignment Angle - Vert. ±15º, Horiz. ±15º
