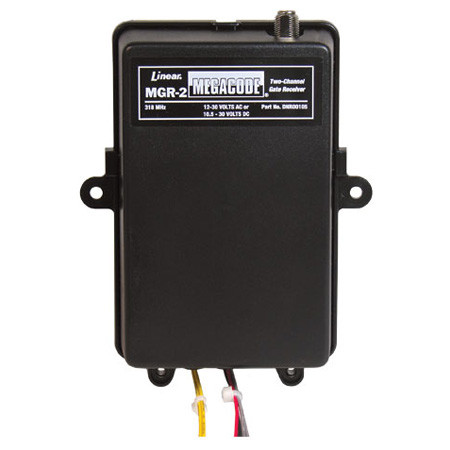

DNR00105 Linear 2-Channel 12-volt Gate Receiver

Features:

• Model Number: MGR-2
• Manufacturer Part Number: DNR00105
• Two Form ”A” (normally open) relays rated at 30 Volts AC/DC up to 5 Amps
• Supplied with whip antenna, three feet of coaxial cable, and bulkhead connector
• Memory: storage for up to 40 MegaCode transmitters
• Power: 12 - 30 VAC or 10.5 - 30 VDC
• Codes: 1,000,000+ (MegaCode format)
• RF frequency: 318 MHz
• Dimensions: 3.625" W x 5.25" H x 1.5" D

The MGR-2 is a 2-Channel Gate Receiver designed for use with automatic gate operators or systems where a remote antenna is needed. The MGR-2 can operate two gates, one gate and an obstacle sensor, or channel one can open the gate and channel two can close the gate. The receiver uses the MegaCode radio format with over a million possible code combinations. Up to 40 transmitters can be programmed into the receiver.

DNR00105 Spec Sheet

DNR00105 Installation Manual
