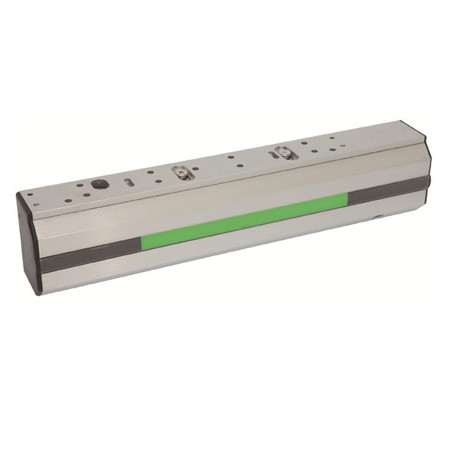

DE8310S x 28 Dormakaba RCI Delayed Egress with Built-in Sounder

Features:

• All-in-One delayed egress lock
• Built in "sensor" detects when pressure is applied to outward swinging doors – No need to replace existing door hardware
• Field selectable 15 or 30 second release delay with field selectable 0 to 3 second nuisance delay
• Provision for IBC, SBC, NFPA101, UBC, BOCA or NBC of Canada compliance
• Unique highly visible "Red/Green" light panel indicates status of door (local)
• Available with built-in sounder, voice and CCTV monitoring combinations
• Camera comes with BNC and RCA video outputs
• Includes 960 Keyswitch for reset and override, 15 second Building Code Sign; base unit includes external sounder

The Delayed Egress Electromagnetic Lock is an All-in-One delayed egress lock with a built-in sensor that detects pressure applied to outward swinging doors. Built-in sounder, voice and CCTV monitoring combinations make this ideal for applications requiring Loss Prevention, Life Safety and Traffic Control. The DE8310 is unique in that there is no need to replace existing door hardware making this an easy and affordable delayed egress solution.

Specifications

• Housing Dimensions
  • 2-1/8" (54mm) Deep x 2-7/8" (73mm) High Profile with10-13/16" (275mm) Length for the base unit
  • 11-3/4" (299mm) Length with voice or sound options 14" (355mm) Length with camera and voice or sound options
  • This includes the 1/4" (6mm) mounting bracket.
• Armature Plate Dimensions - 5/8"D x 2-3/8"H x 7-7/16"L (16mm x 60mm x 189mm)
• Voltage - Auto sensing voltage 12 to 24 VDC Tolerance ±10%
• Power/Current Requirements
  • Camera Unit - Max 0.79A@12VDC Max 0.39A@24VDC
  • Voice/Sounder Unit - Max 0.66A@12VDC Max 0.33A@24VDC
  • Base Unit with external sounder - Max 0.61A@12VDC Max 0.32A@24VDC
• Holding Force - Up to 1200lbs (540kg) pounds
• Certification
  • cULus Listed GWXT Auxiliary Locks | Patent pending
  • cURus Component for use in FWAX Special Locking Arragements
• Operating Temperature - Not for use in outdoor environments. Circuit board operating temperature 14ºF to 140ºF (-10ºC to 60ºC)
