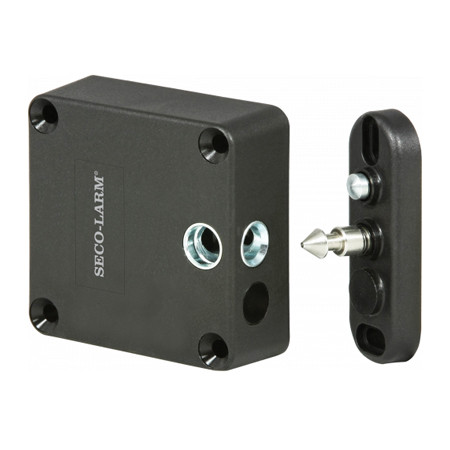

CL-210M-U3BQ Seco-Larm Motorized Cabinet Lock

Features:

• Electronically secure lockers, cabinets, cases, and drawers
• Lock status sensor allows for monitoring whether the lock is engaged
• Door status sensor allows for monitoring whether the door is closed completely
• Compatible with existing keypads or readers
• Spring feature gently pushes door open
• Fail-secure operation
• Various mounting positions
• 12~28 VAC/VDC Operating voltage

The SECO-LARM Motorized Cabinet Lock provides security for lockers, cabinets, cases, and drawers. The built-in lock and door status sensors and fail-secure operation offer additional security. The Motorized Cabinet Lock's small size and compatibility with existing keypads or readers allow for various installations.

Specifications

• Operation - Fail-Secure
• Lock status - Output: 1A@125VAC
• Door Status - Output: 1A@125VAC
• Operating Humidity - 0~95% Non-condensing
• Dimensions - Lock body: 2-3/8"x2-3/8"x7/8" (60x60x22 mm), Rosette: 13/16"x2-3/8"x1-1/16" (20x60x27 mm)
• Holding Force - 220-lb (100kg)
• Operating Voltage - 12~28 VAC/VDC
• Current Draw - Standby: 69mA@12/24 VDC, Active: 165mA@12/24 VDC
• Housing material - Polyamide
• Operating Temperature - 14"~113" F (-10"~45" C)
• Weight - 3-oz (93g)
• Relock Delay - 2~5 econds
