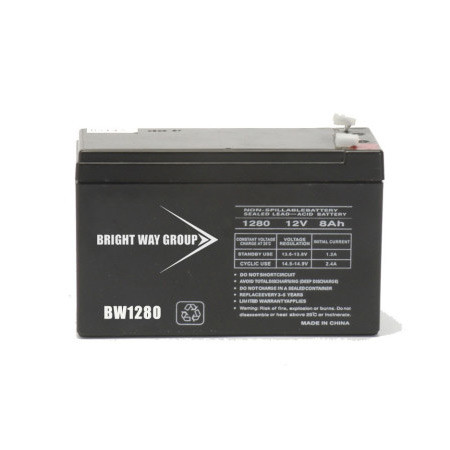

BW1280/F1 BWG Rechargeable SLA Battery 12Volts/8Ah - F1 Terminals

Features:

• 12Volts
• 8Ah
• F1 Terminals

Specifications

• Nominal Voltage - 12 volts
• Rated Capacity - 8Ah
• Dimensions - Total Height: 3.98", Length: 5.94", Width: 2.56"
• Weight - 4.76 lbs

Characteristics

• Capacity 77ºF - 20h rate (0.35A) 8.0Ah, 10h rate (0.65A) 6.5Ah, 5h rate (1.12A) 5.6Ah, 1h rate (4.76A) 7.76Ah, 15 min rate (13.2A) 3.3Ah
• Internal Resistance - Full Charged Battery 77ºF: 25m
• Capacity Affected by Temperature (20h Rate) - 104ºF: 102%, 77ºF: 100%, 32ºF: 85%, 5ºF: 65%
• Self-Discharge 68ºF (Capacity After) - 3 month storage: 90%, 6 month storage: 80%, 12 month storage: 60%
• Max Discharge Current 77ºF - 105(5s)
• Terminal - F1
• Charge (Constnat Voltage 77ºF) - Cycle: 14.5~14.9V, Max Current 2.8A, Float 13.6~13.8V

BW1280/F1 Datasheet
