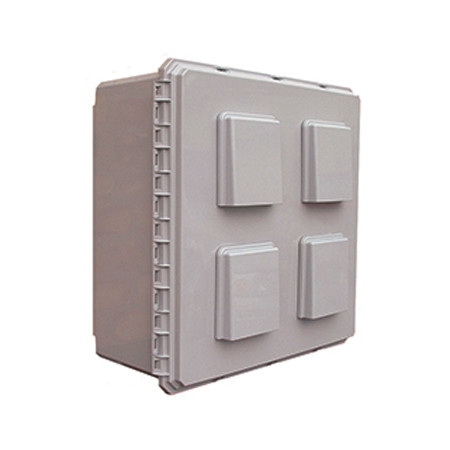

BW-FC242410-QT Mier NEMA Type 3R Outdoor 24" W x 24" H x 10" D Polycarbonate Enclosure with Thermostat and Fans - Gray - Solid Door with Two Quarter-turn Latches

Features:

• Dimensions: 24" W x 24" H x 10" D
• Color: Gray
• NEMA 3R, Fan Ventilated, NON-METALLIC Enclosure
• Non-metallic polycarbonate enclosure allows you to placetransmitters/receivers inside
• Highly adaptable internal panel adjustment and rail system
• Two 81 cubic foot-per-minute thermostatically controlled fans
• Four air intake and fan exhaust protective shrouds with gasket and hardware
• Air filters
• All holes pre-cut to install included shrouds, fans, filters
• Interior water channel & gaskets for added protection
• Pad-lockable and screw down
• Four latches pull door tight into gasket
• Optional Back Panels or DIN Rails fit onto standoffs already existing in the back of the enclosure
• Optional Back Panel Adjustment Kit allows you to "stack" panels within the enclosure

The "FC Series" fan-cooled & ventilated NEMA 3R outdoor/indoor enclosures are an inexpensive choice for installation where you need air-flow exchange to ventilate your components mounted within enclosures. However, please keep in mind fan-cooled & ventilated enclosures simply exchange internal air for the external air. Therefore, Fan-Cooled models are not recommended for extreme high-temperature nor extreme low temperature environments. Because these units pull external air into the enclosure through a filtering system, they are listed as NEMA 3R and do not meet the NEMA 4 standards of Mier's air-conditioned and heated models (ACE Series or ACHT Series) which are the safest choice when your components need NEMA 4 type protection from the elements such as moisture, heat, cold, wind, rain, snow, ice, etc., or from wash down conditions.

Specifications

• Dimensions - 24" W x 24" H x 10" D
• Color - Gray

BW-FC242410-QT Specifications PDF
