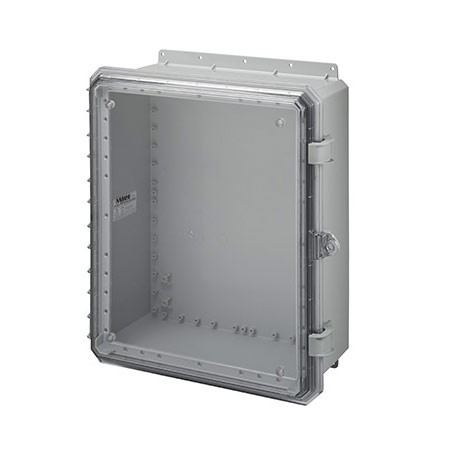

BW-20168C Mier UL Listed NEMA Rated Outdoor 20" H x 16" W x 8" D Polycarbonate Electrical Enclosure - Gray - Clear Door

Features:

• Dimensions: 20" H x 16" W x 8" D
• Color: Gray
• Outdoor, NEMA Type 2, 3, 3R, 3S, 4, 4X, 5, 13
• UL-50/c-UL Listed (file# E207562), UL Flame Rating: UL94-5VA, UV Rating: UL–F1
• Highly adaptable internal panel adjustment and rail system
• Mounting system
• Multiple standoffs
• Interior water channel & gaskets for added protection
• Four latches pull door tight into gasket
• Pad lockable
• Options available: Back panel, BW-BPAK to stack multiple panels or adjust panel height, Pole-mount kits, DIN rails, Heaters

Mier's extensive line of durable polycarbonate boxes offers a solution to most installation problems when it comes to size, style, and convenience. In addition to the enclosures listed here, Mier manufactures cost-effective and highly customizable metal enclosures, and offers a line of high quality Cam Locks to take security one step further.

Specifications

• Dimensions (H" x W" x D") - 20" x 16" x 8"
• Color - Gray

BW-20168C Specifications PDF
