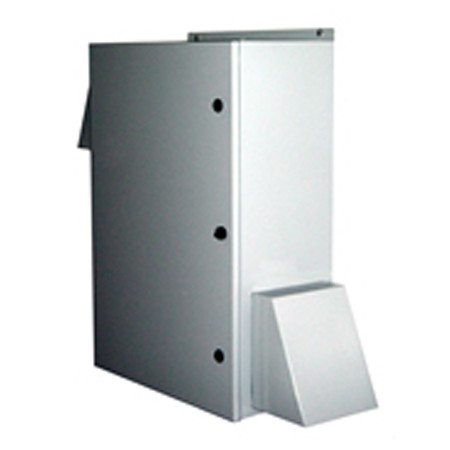

BW-136FC Mier NEMA Type 3R Outdoor 24" W x 36" H x 12" D Metal Enclosure - Gray w/ Internal Removable 22" W x 34" H Back-Panel

Features:

• Dimensions: 24" W x 36" H x 12" D
• Color: ASA 70 Gray
• Interior water channel & gasketing for added protection
• Removable 22" x 22" panel
• Removable door
• Tamper Switch
• 115V, 300 cubic foot/minute continuous-duty fan
• External fan and rain shrouds
• Fan and air intake filters
• Two 1/4 turn latches pull door tight into the gasket
• Interior literature tray with key tabs
• Tubular-key lock
• Thermostat control available

The "FC Series" fan-cooled & ventilated NEMA 3R outdoor/indoor enclosures are an inexpensive choice for installation where you need air-flow exchange to ventilate your components mounted within enclosures. However, please keep in mind fan-cooled & ventilated enclosures simply exchange internal air for the external air. Therefore, Fan-Cooled models are not recommended for extreme high-temperature nor extreme low temperature environments. Because these units pull external air into the enclosure through a filtering system, they are listed as NEMA 3R and do not meet the NEMA 4 standards of Mier's air-conditioned and heated models (ACE Series or ACHT Series) which are the safest choice when your components need NEMA 4 type protection from the elements such as moisture, heat, cold, wind, rain, snow, ice, etc., or from wash down conditions.

The "FC Series" fan-cooled & ventilated NEMA 3R outdoor/indoor enclosures are an inexpensive choice for installation where you need air-flow exchange to ventilate your components mounted within enclosures. However, please keep in mind fan-cooled & ventilated enclosures simply exchange internal air for the external air. Therefore, Fan-Cooled models are not recommended for extreme high-temperature nor extreme low temperature environments. Because these units pull external air into the enclosure through a filtering system, they are listed as NEMA 3R and do not meet the NEMA 4 standards of Mier's air-conditioned and heated models (ACE Series or ACHT Series) which are the safest choice when your components need NEMA 4 type protection from the elements such as moisture, heat, cold, wind, rain, snow, ice, etc., or from wash down conditions.

Specifications

• Dimensions - 24" W x 24" H x 12" D
• Color - ASA 70 Gray

BW-136FC Specifications PDF
