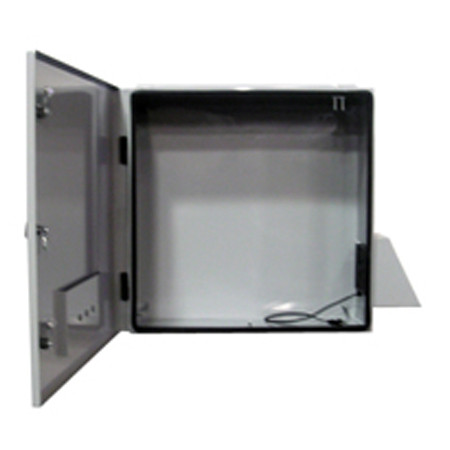

BW-124FC Mier NEMA Type 3R Outdoor 24" W x 24" H x 8" D Metal Enclosure with Thermostat and Fan - Gray w/ Internal Removable 22" W x 22" H Back-Panel
- Brand
- Mier
- SKU:
- BW-124FC
- UPC:
- 612212071060
Features:
- Dimensions: 24" W x 24" H x 12" D
- Color: ASA 70 Gray
- Interior water channel & gasketing for added protection
- Removable 22" x 22" panel
- Removable door
- Tamper Switch
- 115V, 300 cubic foot/minute continuous-duty fan
- External fan and rain shrouds
- Fan and air intake filters
- Two 1/4 turn latches pull door tight into the gasket
- Interior literature tray with key tabs
- Tubular-key lock
- Thermostat control available
The "FC Series" fan-cooled & ventilated NEMA 3R outdoor/indoor enclosures are an inexpensive choice for installation where you need air-flow exchange to ventilate your components mounted within enclosures. However, please keep in mind fan-cooled & ventilated enclosures simply exchange internal air for the external air. Therefore, Fan-Cooled models are not recommended for extreme high-temperature nor extreme low temperature environments. Because these units pull external air into the enclosure through a filtering system, they are listed as NEMA 3R and do not meet the NEMA 4 standards of Mier's air-conditioned and heated models (ACE Series or ACHT Series) which are the safest choice when your components need NEMA 4 type protection from the elements such as moisture, heat, cold, wind, rain, snow, ice, etc., or from wash down conditions.
The "FC Series" fan-cooled & ventilated NEMA 3R outdoor/indoor enclosures are an inexpensive choice for installation where you need air-flow exchange to ventilate your components mounted within enclosures. However, please keep in mind fan-cooled & ventilated enclosures simply exchange internal air for the external air. Therefore, Fan-Cooled models are not recommended for extreme high-temperature nor extreme low temperature environments. Because these units pull external air into the enclosure through a filtering system, they are listed as NEMA 3R and do not meet the NEMA 4 standards of Mier's air-conditioned and heated models (ACE Series or ACHT Series) which are the safest choice when your components need NEMA 4 type protection from the elements such as moisture, heat, cold, wind, rain, snow, ice, etc., or from wash down conditions.
Specifications
- Dimensions - 24" W x 24" H x 12" D
- Color - ASA 70 Gray
