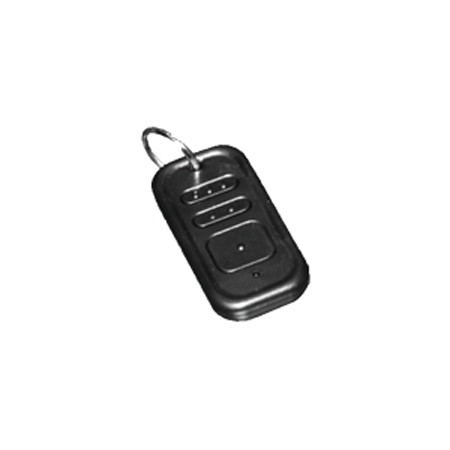

9RCT4333 Dormakaba RCI 433 MHz Three-Button Handheld, 3" x 2" x 1"

Features:

• Operates with a unique rolling code each time the switch is activated
• Multiple applications (i.e. Vestibule) with Delay or No Delay programming
• 100 transmitters can be programmed into a single receiver
• Removal of a single transmitter code
• Up to 4 separate wireless Receivers can be activated by a single Transmitter (i.e. 4-Button)
• Red LED indicator on Transmitter confirms transmission and battery life
• 3-Volt or 9-Volt Battery Power

RCI’s 9RCR433 Receiver and 9RCT433 Transmitters are universally compatible with all automatic door "remote" application.

Specifications

• Frequency - 433 MHz
• Emitted Radio Power - -28.7 dBm (TX)
• Power Consumption - 3mA (TX) 30mA (RX)
• Input Voltage - 12 to 24 VAC/DC (RX)
• Contact Rating - 1.0 A @ 30 VDC, 0.5 A @ 125 VAC, 0.3 A @ 60 VDC
• Operating Temperature - 14°F to 131°F (-10°C to 55°C)
• Max No. of Programmed Units Per Receiver - 100 Transmitters
• LEDs Receiver Learn - Red
• Relay Activation - Blue
• Transmitter Dimensions - 2-3/4" x 1-3/8" x 9/16" (70 mm x 35 mm x 14 mm)
• Receiver Dimensions - 2-3/4" x 2-1/8" x 1" (70 mm x 55 mm x 25 mm)
• Certifications - FCC, IC, CE

9RCT4333 Specifications PDF

Dormakaba RCI 9RCT433-9DRCR433 Transmitter and Receiver Ordering Guide PDF
