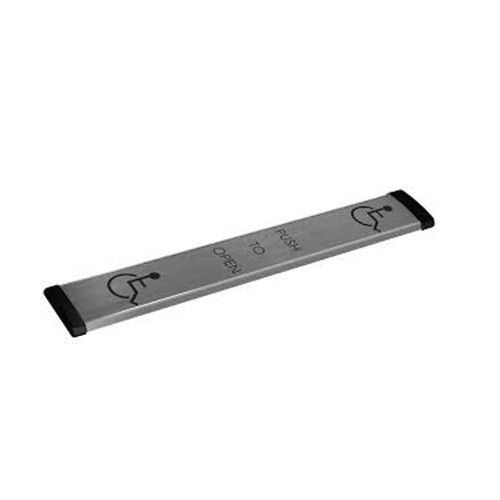

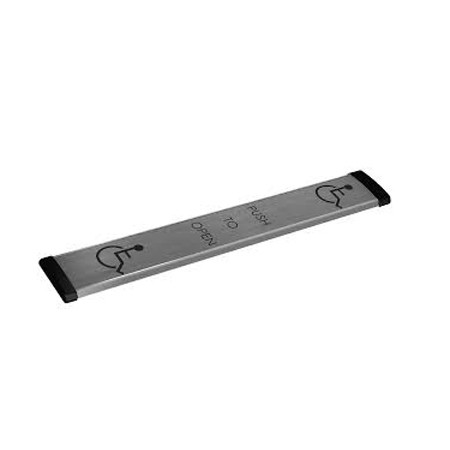

9LP36-433 Dormakaba RCI 36" Low Profile Push Bar - Plate Includes 433 MHz Transmitter - Wireless Installation 36" x 6" x 1"

Features:

• Designed with a 36 × 6 inch activation zone and low profile depth of 1 inch
• Exceeds the California Building Code, Section 1117B.6
• Exceeds Ontario Building Code, Sections A-3.8.3.3 (17) and A-3.8.1.5
• Can be mounted to any flat surface using concealed fasteners for aesthetics and minimize vandalism
• Easily adapts to either a wireless or hard wired installation
• Optional built-in wireless transmitter comes pre-installed in the top end cap
• First UL Listed push plate for pedestrian door activation under UL325 for US and Canada.

The new Low Profile 36" Push Plate for automatic doors maximizes mobility and independence for people with disabilities. ADA & DDA compliant. The entire surface provides four separate, and redundant switches that allow activation from virtually any angle and location

Specifications

Technical

• Contact Configuration - SPST N.O.
• Switching Voltage - .1 to 50V DC
• Switching Capacity - 1 Watt
• Switching Current - .005 to 100 ma DC
• Contact Bounce - < .3 ms make < .6 ms break
• Trip Force - 1.5 lbs
• Two Conductor Cabling - 24 awg, 7 × 32 stranding UL 1007
• Operation Temperature - -35ºC to +100ºC
• Contact Life - 2 million cycles
• Transmitter Frequency - 300, 390 or 433 MHz

Materials

• Dome Material - Stainless Steel
• Switch Material - FR4 Gold Plated Traces
• Membrane Switch Material - 3M 7993MP
• Base Material - Aluminum
• Face Plate - Stainless Steel
• Switch Actuator Material - Nylon 6/6
• End Cap Material - UL94 ABS
