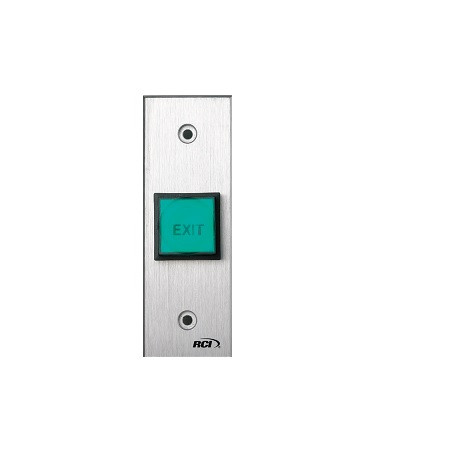

975N-MO-08 x 28 Dormakaba RCI Dormakaba RCI Narrow Momentary Action Push Button Brushed Anodized Aluminum Faceplate 24VDC

Features:

• Push button dimension no less than 25mm
• Internally illuminated by a permanent LED type light source
• Able to mount in a prominent position close to the door. Narrow plate size allows the button to be installed on most frames without the need of a surface box
• Brushed Anodized Aluminum or Brushed Anodized Dark Bronze finishes
• Extruded aluminum 1/4" plate with beveled edges for tamper-resistance and durability
• Specify 12 or 24 VAC/VDC
• Green LED with green lens

To meet Vancouver's Building Codes RCI has made some great advancements. RCI’s 975 Push Button clearly meets all the codes. Code states that the Push Button dimensions should be no less than 25mm.

RCI’s 975 Push Button has a permanent LED, meeting code that the Push Button has to be internally illuminated by a permanent LED type light source. The 975 is available in both standard and narrow plate size. This allows the button to be installed on most frames without the need of a surface box; as code states that the Push Button should be mounted in a prominent position close to the door.

Specifications

• Model - 975N-MO
• Description - Narrow, Illuminated (with White/Green bi-colour) PushButton; Momentary
• Dimensions -1-5/8" x 4-3/4"
• Finish - 28

975N-MO-08 x 28 Specifications PDF

Dormakaba RCI 975 Illuminated Exit Pushbutton Ordering Guide PDF
