972-L-ES-TD30-MO x 32D Dormakaba RCI English/Spanish Momentary With 30sec. Fixed Timer x 32D

Features:

• Now available with integrated 30 sec. fixed or adjustable timer (optional)
• Large 2" (50.8mm) square illuminated pushbutton
• Available in long life incandescent (972-i) or LED (972-L) bulbs (Specify when ordering)
• SPDT 10 Amp Contacts
• Stainless steel single gang faceplate

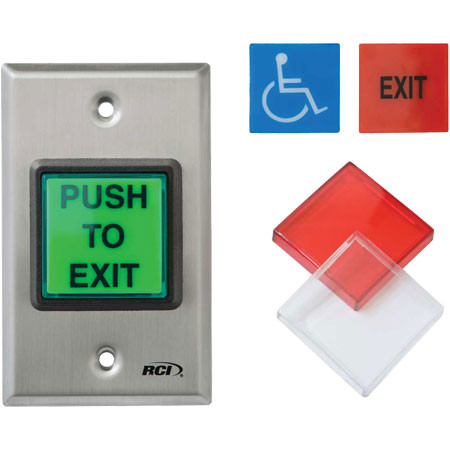

• Includes 2 messages and a handicap symbol (in English and Spanish or French)
• Includes 3 colored lenses (Green, Red, Clear)
• Momentary switch operation

RCI’s 972 Request to Exit Button makes it easy by combining three popular buttons in one box. The 972 is packaged with three lenses, and three messages so you are certain you have made the right selection with a 2" (50.8mm) request to exit button. This 2" (50.8mm) button is available with a long life incandescent or LED bulb. Now available with an optional 30 sec. fixed or adjustable delay timer.

Specifications

• Model - 972-L-ES-MO
• Description - 2" Pushbutton with LED bulb
• Voltage - 12 and 24VDC
• Dimensions - 2-3/4" x 4-1/2"
• Finish - 32D
