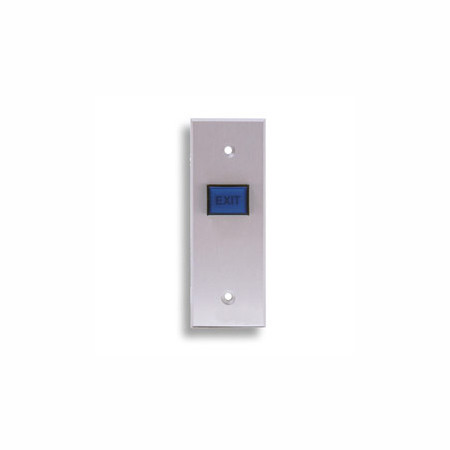

970N-B-TD-A-08-40 Dormakaba RCI Narrow Electronic Time-Delay Action Audible Alert Tamper-proof Illuminated Request-To-Exit Button Brushed Anodized Aluminum Faceplate 24VDC - Blue Cap

Features:

• Heavy-duty extruded aluminum 1/4" (6.4mm) plate with beveled edges
• Momentary, maintained or time-delay switch available
• 970N (narrow) compatible with 1-3/4" (44.5mm) door frame profiles
• Blue illuminated "Exit" cap with black trim (specify 12V or 24V) Yellow, Green and Red lenses optional
• Two #6-32 stainless steel tamper-proof screws and driver included
• Brushed Anodized Aluminum or Brushed Anodized Dark Bronze finish
• Available in French or Spanish
• Optional audible alert add-on

RCI’s sleek-looking, beveled-edge 970 request-to-exit buttons are designed to discourage tampering. A special driver and tamperproof screws are included to prevent unauthorized faceplate removal.The 970 also offers an audible alert option, continuous or intermittent (field selectable,) mounted on the faceplate. The cover plate and switch mounting design can be used with most standard and mortise electrical utility boxes.

Specifications

• Description - 970-TD
• Switch Mode - Exit Button Adjustable Time Delay*
• Switch Configuration - DPDT N/O & N/C
• Switch Rating - 5A @250VAC CSA
• Standard Finish - 28 or 40 Faceplate with Blue Cap

970N-B-TD-A-08-40 Specifications PDF

Dormakaba RCI 970 Illuminated Exit Pushbutton Ordering Guide PDF
